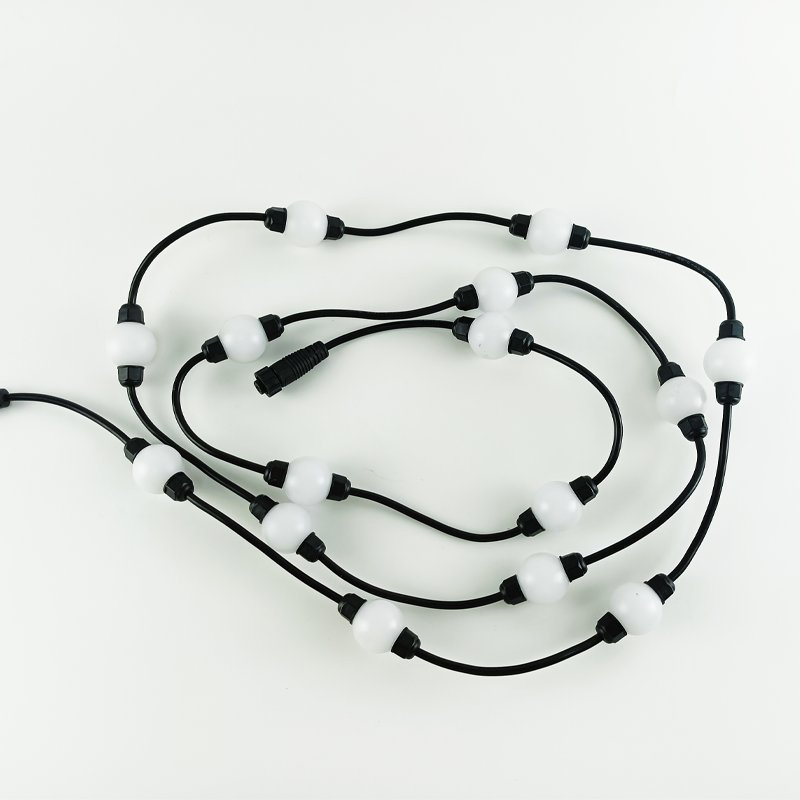

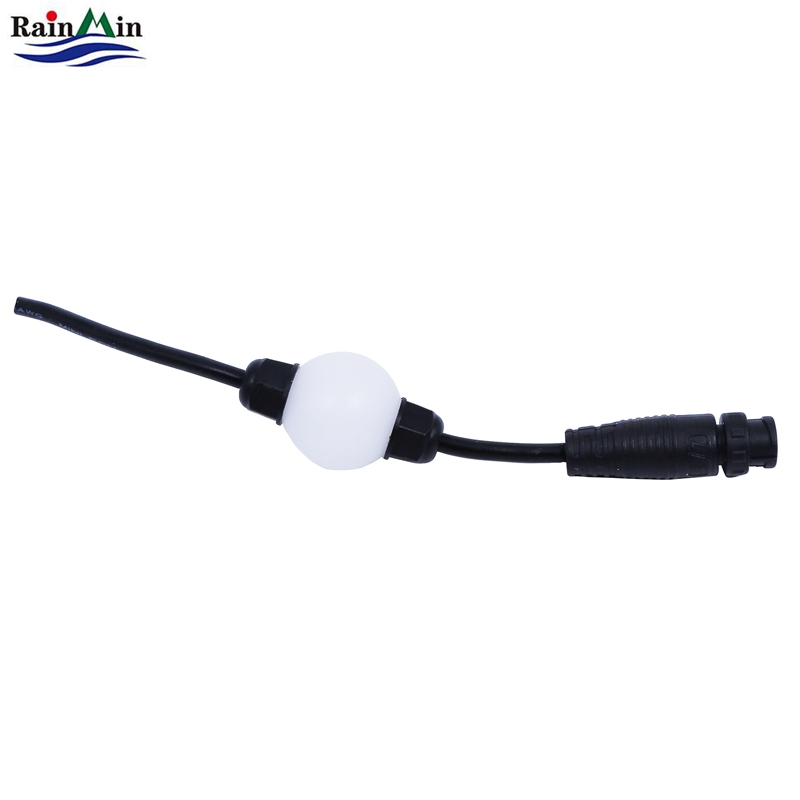

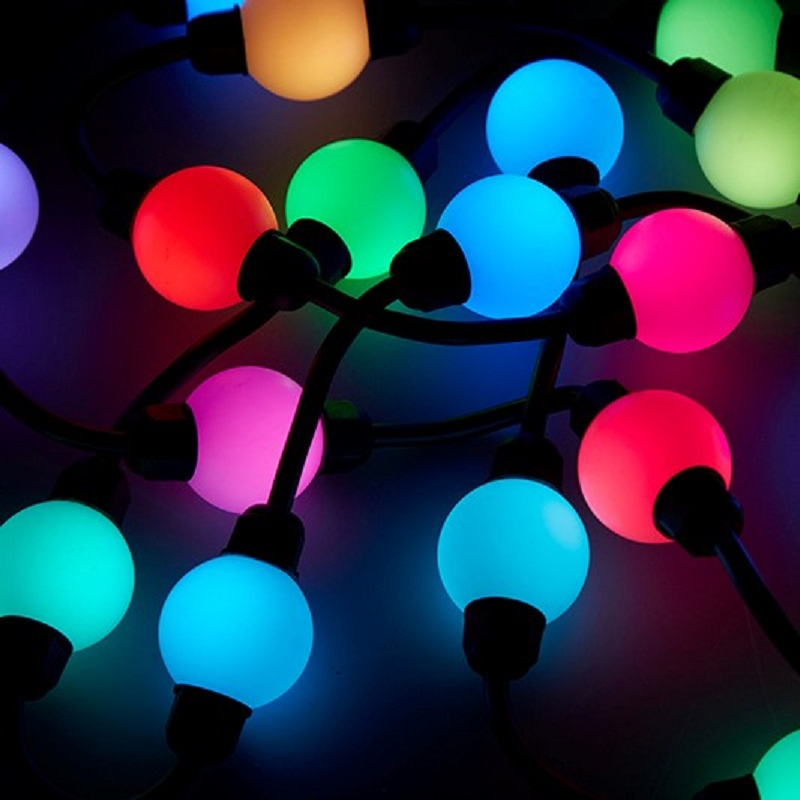

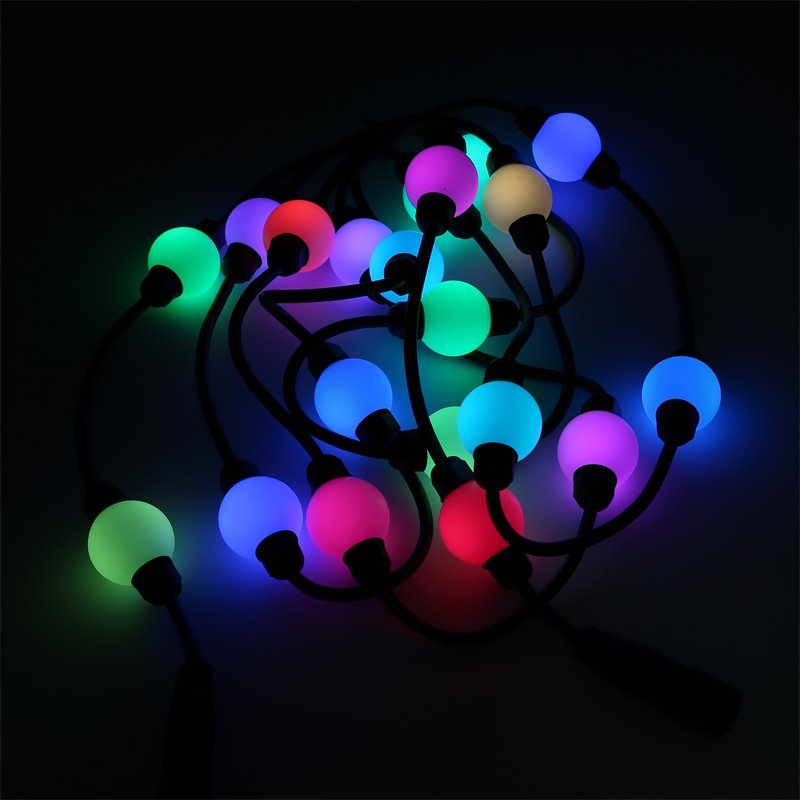

SMD5050 LED Pixel String LED Pixel Point Light 28mm Spi Control

Customization: Available
Certification: CE
Power: 0.336W

Product Description

Basic Information
Model NO.G28
Emitting ColorR-G-B
Voltage12V
IP RatingIP66
LED ChannelsR-G-B
Grey Scale16 Bits, 65,536
LED Quantity2
Beam Angle360-Degrees
Grust MaterialPolycarbonate
Waterproof LevelIP66, Outdoor Use
Working Temperature-25 to +55 Deg
Current0.028 AMPS
Wire Type22 AWG, 3c, UV Protected
Max Before Power InjectionApprox 100 Lights / 30 Meters
Control TypeIndividual / SPI Protocol
Product Description

SMD5050 LED Pixel String LED Pixel Point Light 28mm SPI Control

LED TypeSMD 5050
LED ChannelsRGB
Beam Angle360-degrees
Grust MaterialPolycarbonate
Waterproof LevelIP66, Outdoor use
Input Voltage12V DC
Detailed Photos

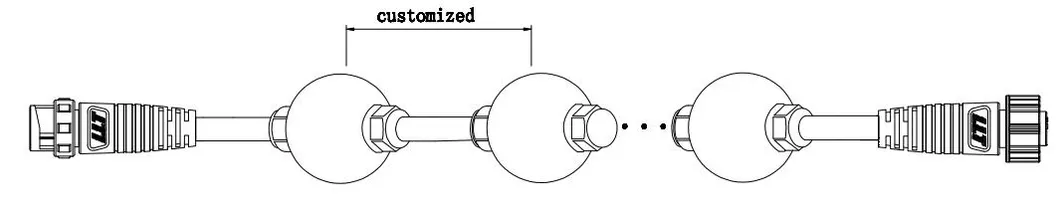

Photo 1

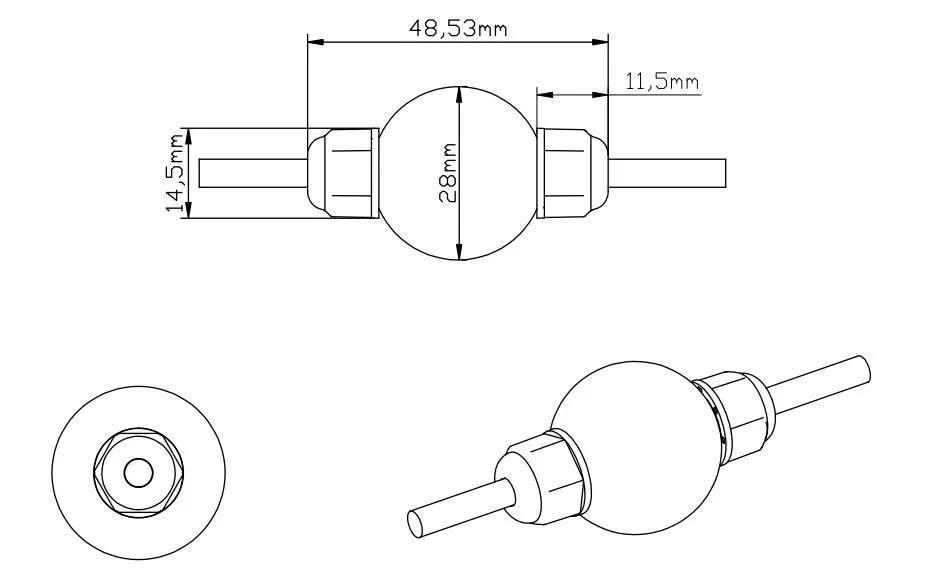

Photo 2

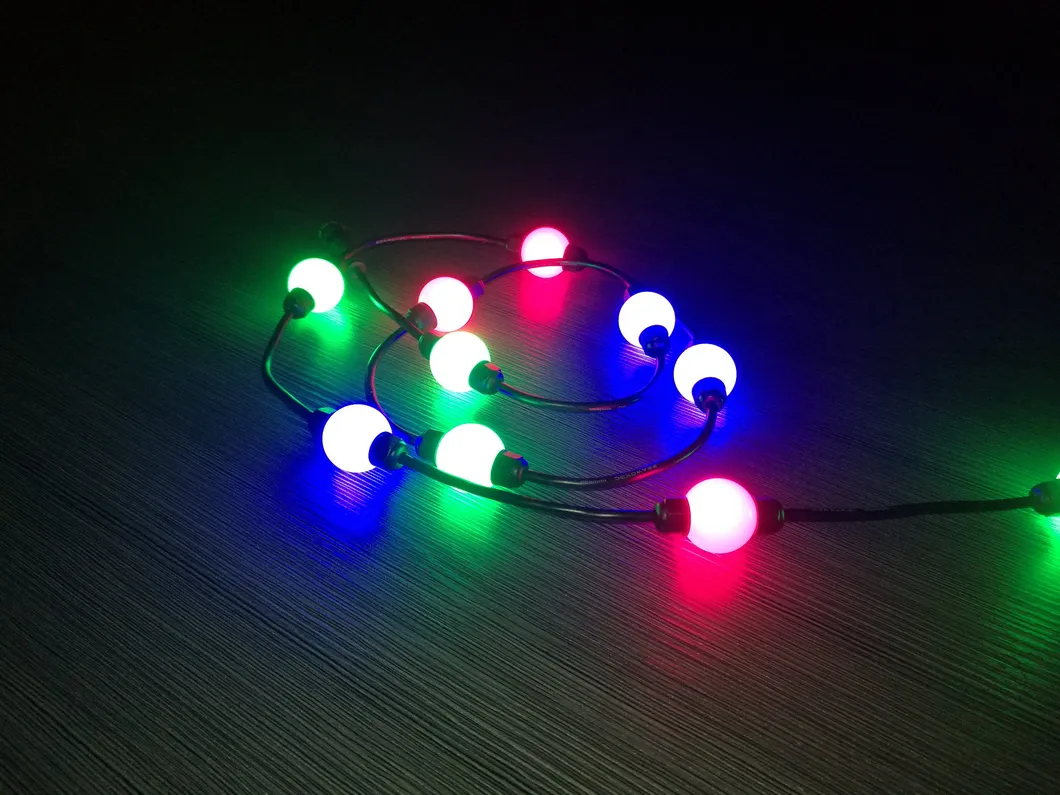

Main Photo
Product Application

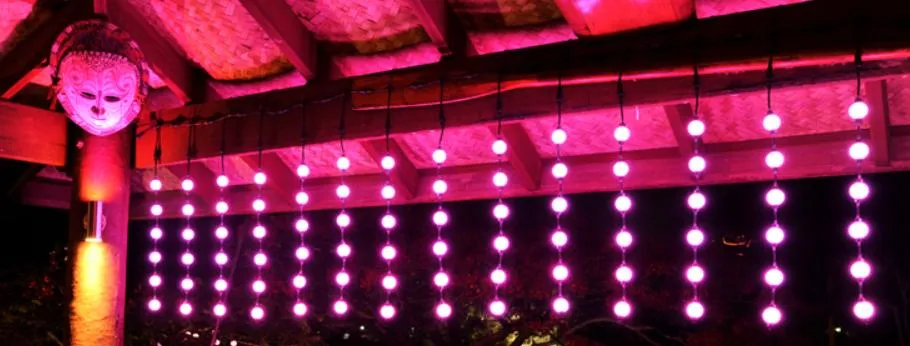

Application 1

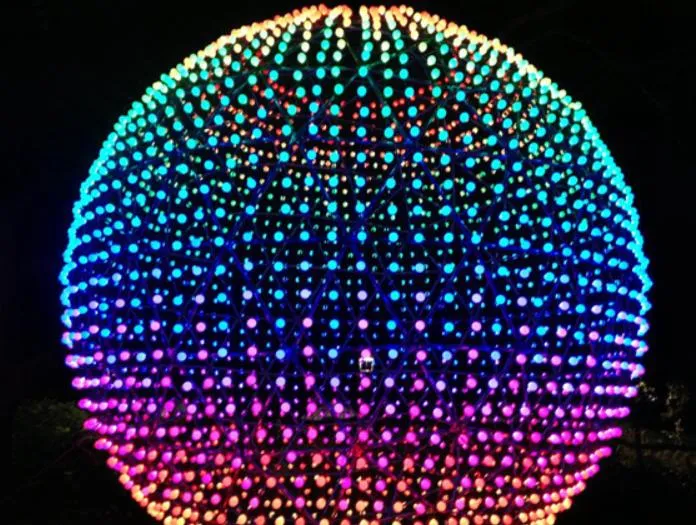

Application 2

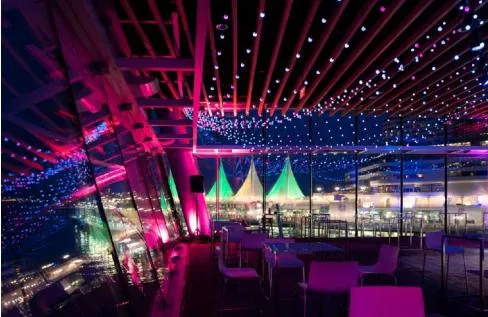

Application 3

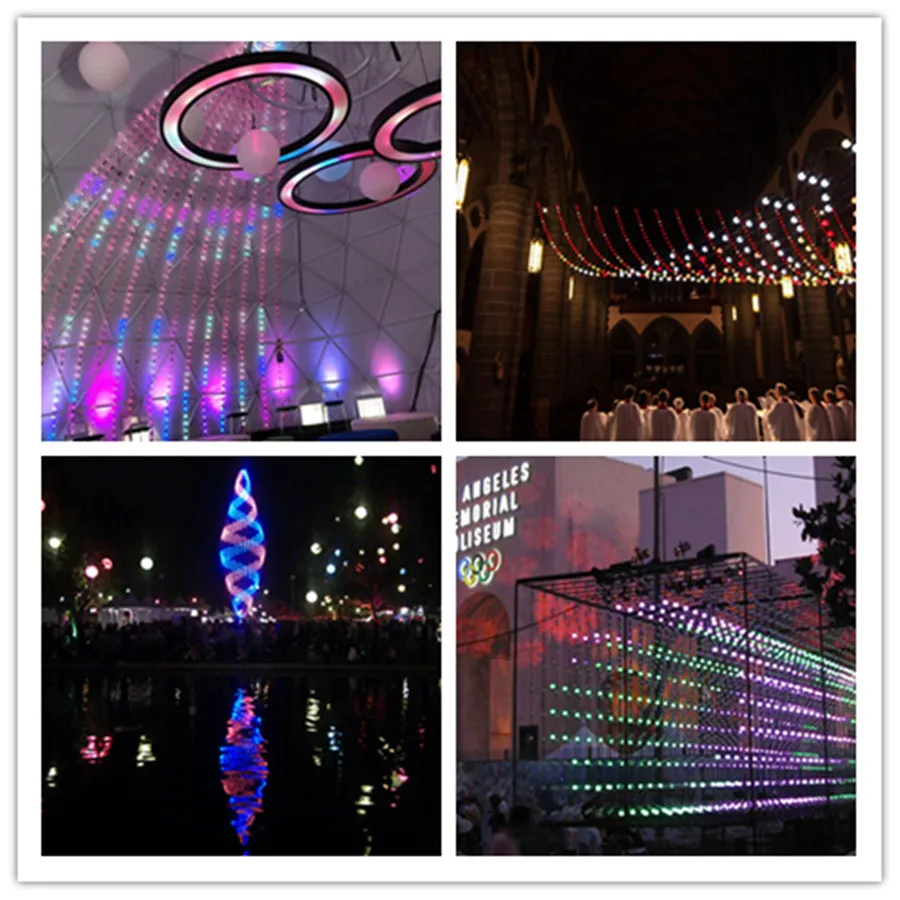

Application 4
Scope of Application:

• Christmas decoration, Cove Lighting Path and contour lighting

• Backlight for signage/letters, Architectural lights for Canopy, Window, Corridor

• DIY Lights for home use, Marine light, Task lighting

• Decorative lights for holiday, event, show, exhibition.

Packaging & Delivery
Package Size10.00cm * 10.00cm * 10.00cm
Package Gross Weight0.100kg
Transport PackagePlastic Bags + Carton Boxs
Packaging
Our Advantages
  • 12V/24VDC: Safe low DC voltage perfect for public and commercial applications.
  • IP65/IP66: Durable design for outdoor and indoor permanent use.
  • UV Rated: High-quality Polycarbonate materials to withstand harsh sun.
  • 48 Bit Digital Processing: 16 Bit per color for millions of combinations.
  • 1KHZ Refresh Rate: Broadcast-quality recording without flicker.

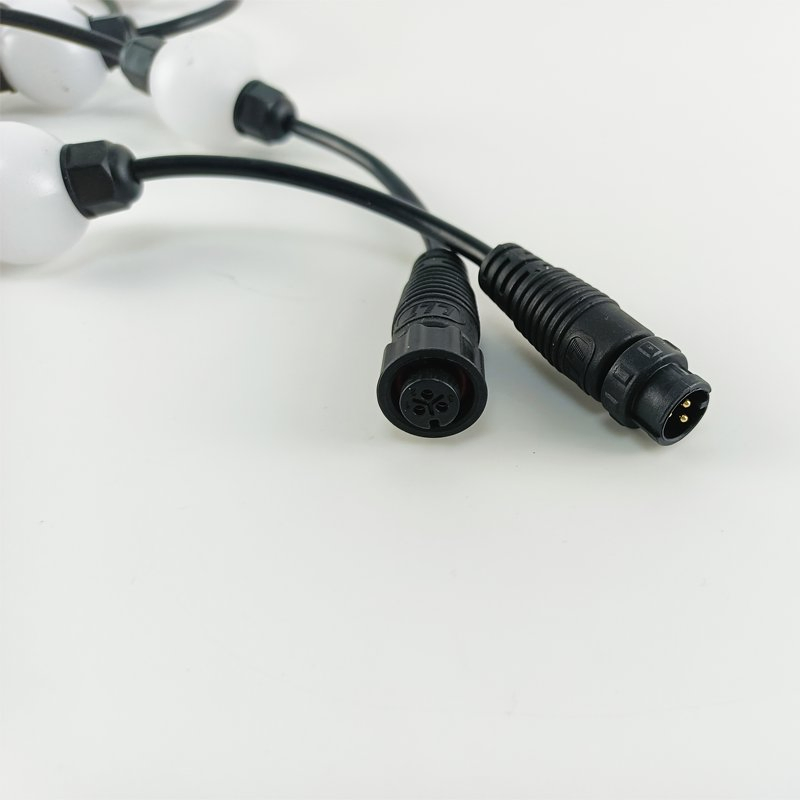

  • Quick Connect Plug: Fast 1/2 turn weatherproof connector.
Ref 1

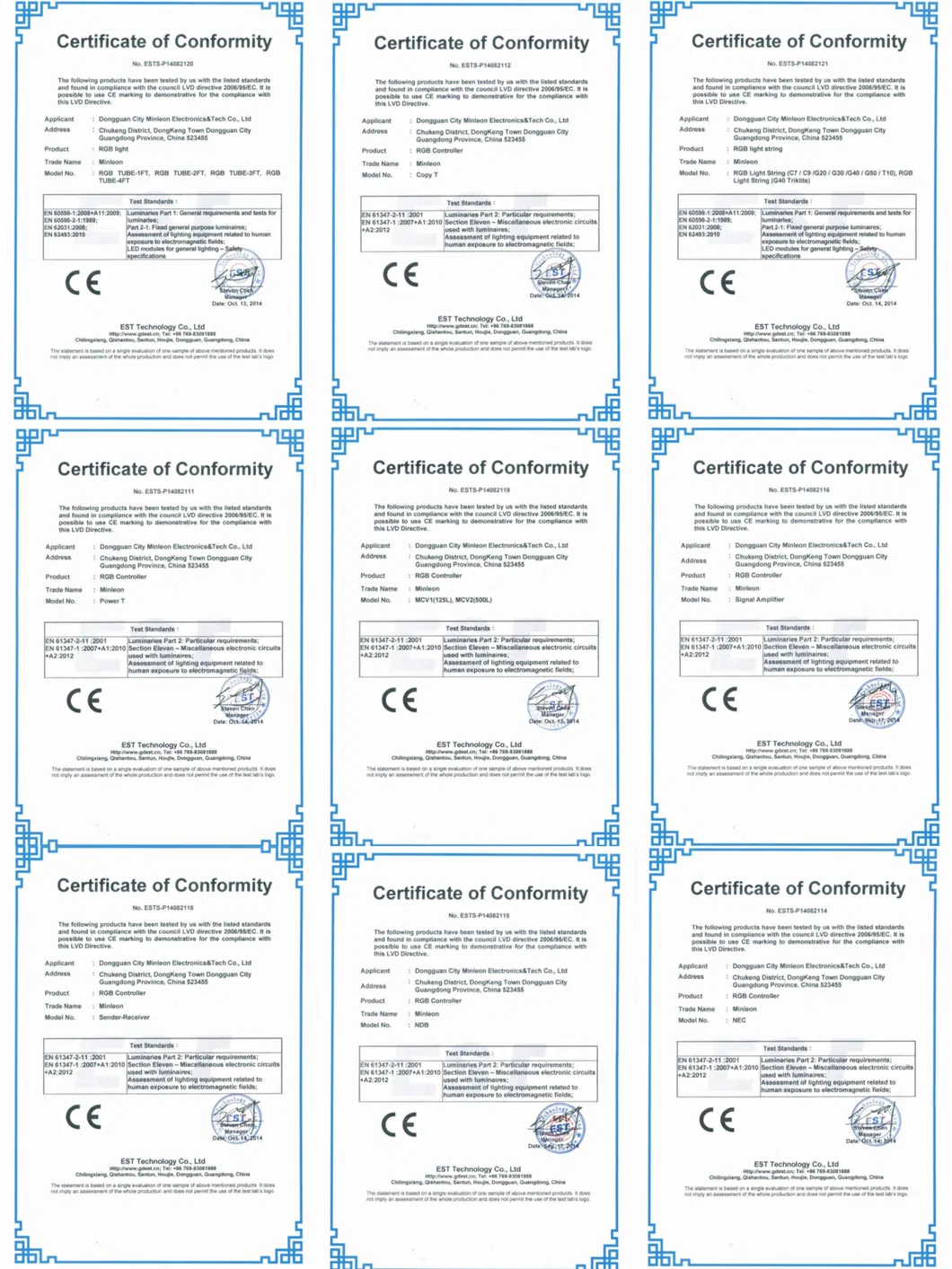

Ref 2

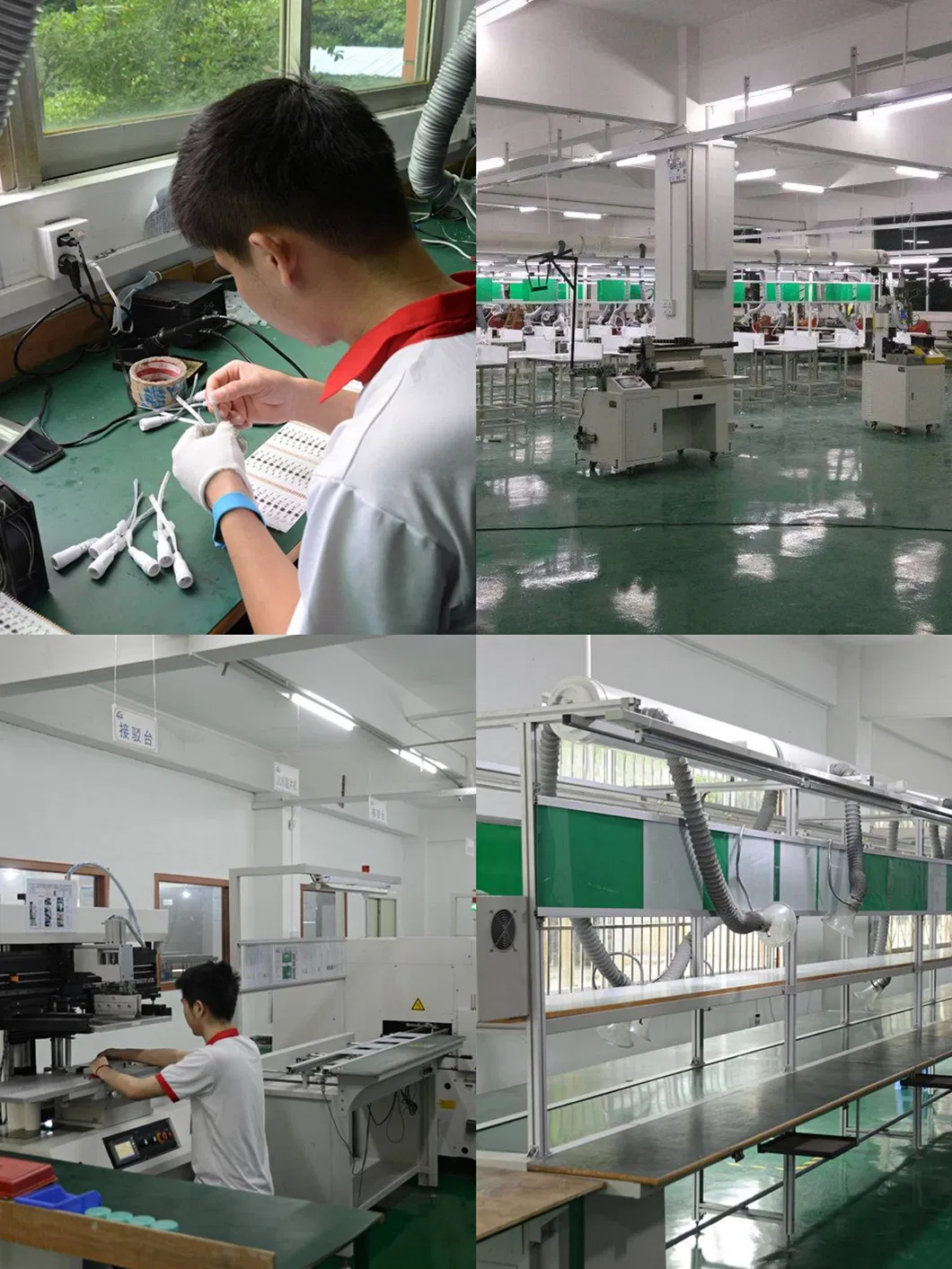

Ref 3
Frequently Asked Questions
Q1: What is the waterproof rating of this pixel light? A: The G28 pixel light is rated IP66, making it highly suitable for outdoor use and resistant to water ingress.
Q2: How many lights can be connected before needing power injection? A: Approximately 100 lights or a distance of about 30 meters can be covered before power injection is required.
Q3: What kind of control system does it use? A: It uses the SPI protocol and allows for individual control of each pixel for dynamic lighting effects.
Q4: What material is used for the outer casing? A: The shell is made of high-quality Polycarbonate (PC), which is UV protected and durable for long-term outdoor exposure.
Q5: Can these be used for video recording without flickering? A: Yes, with a 1KHZ refresh rate, these lights are broadcast-quality and will not show flicker effects on camera.
Q6: What are the main applications for these pixel strings? A: They are ideal for Christmas trees, signage backlighting, architectural outlines, and decorative exhibition displays.
