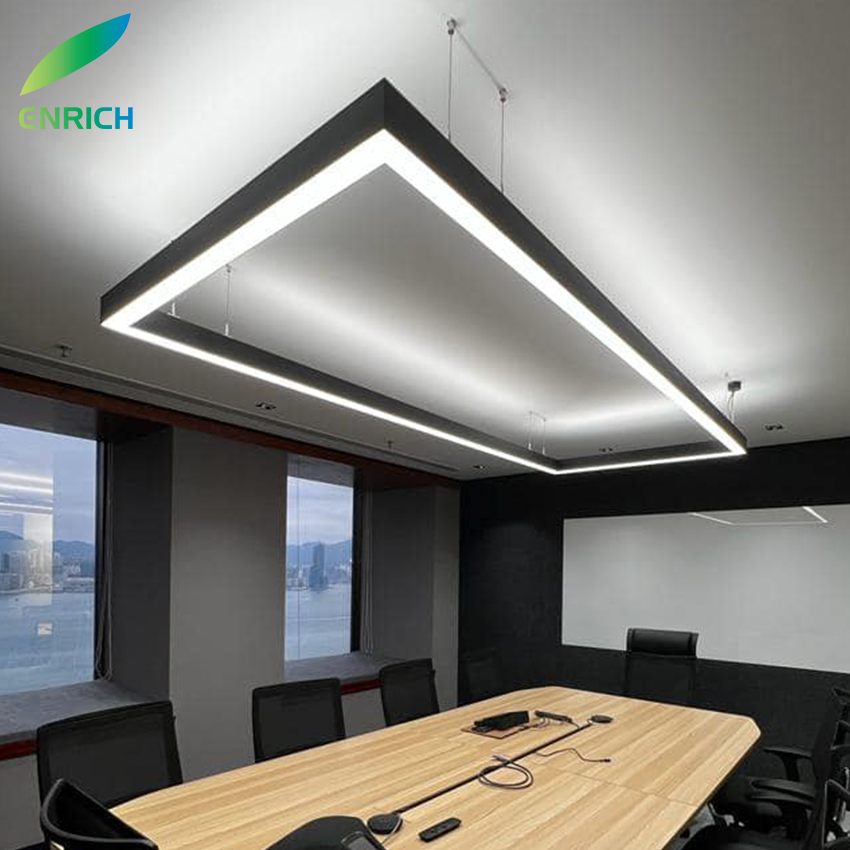

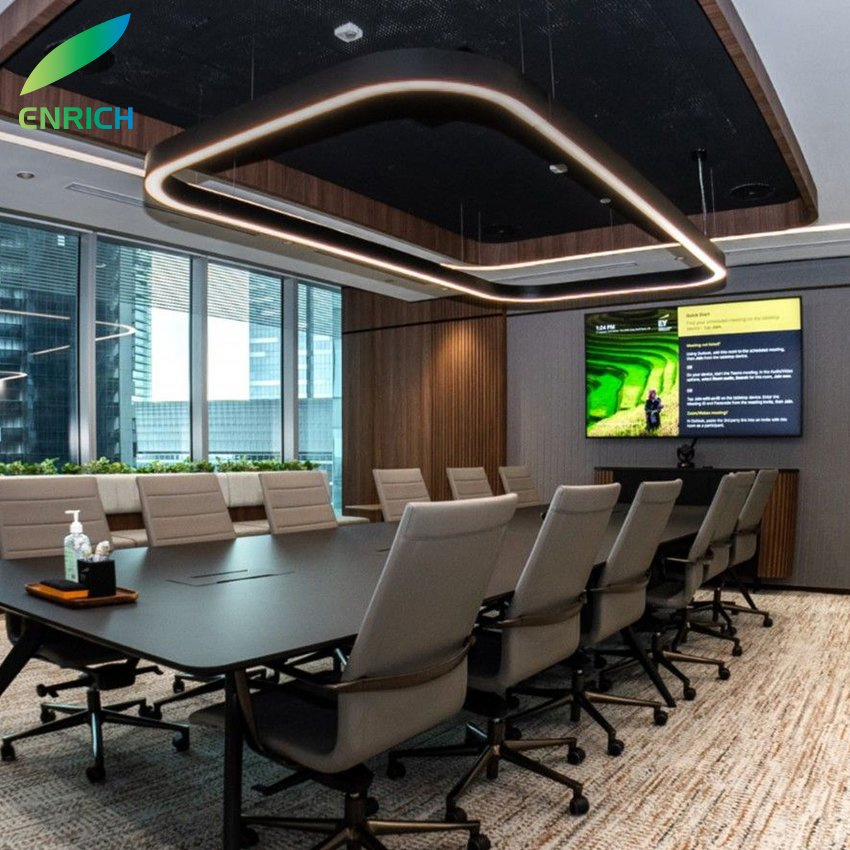

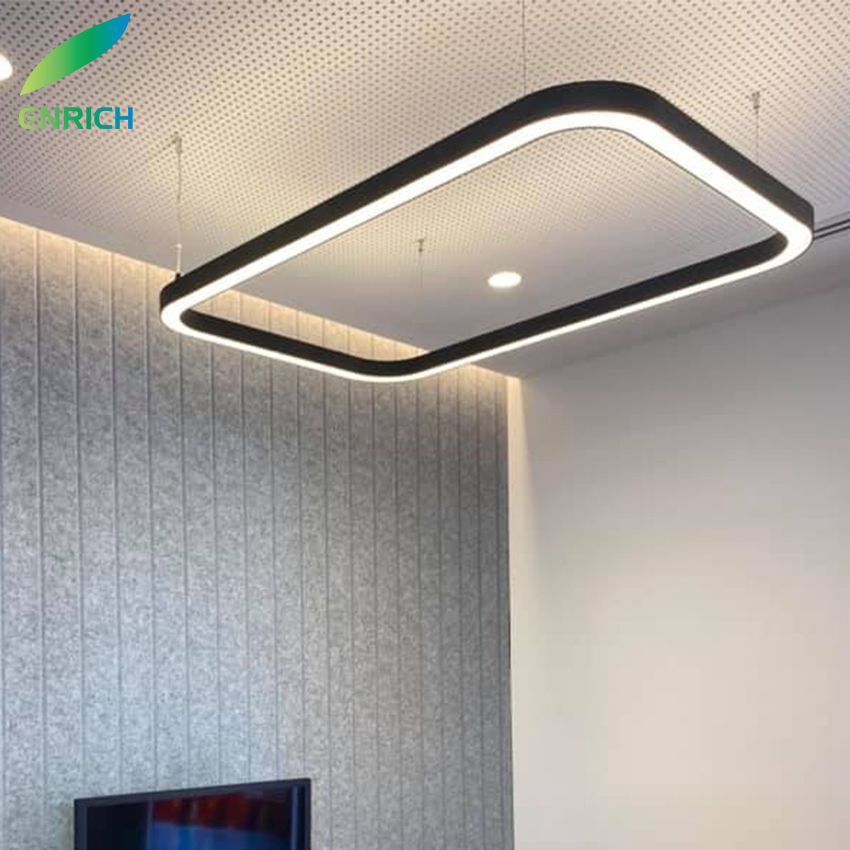

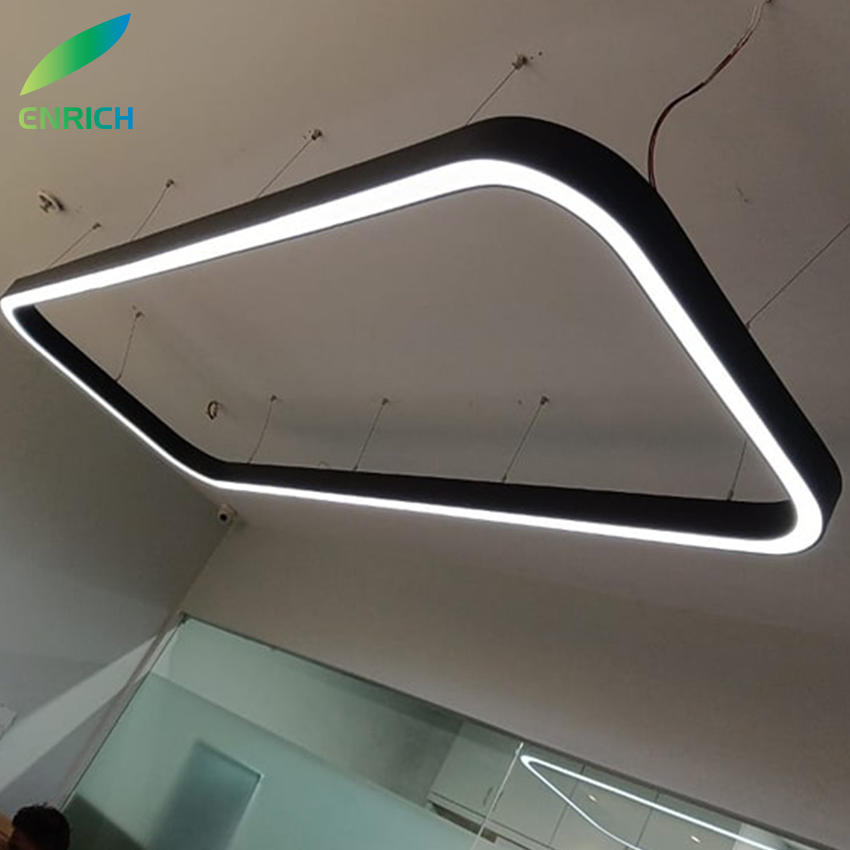

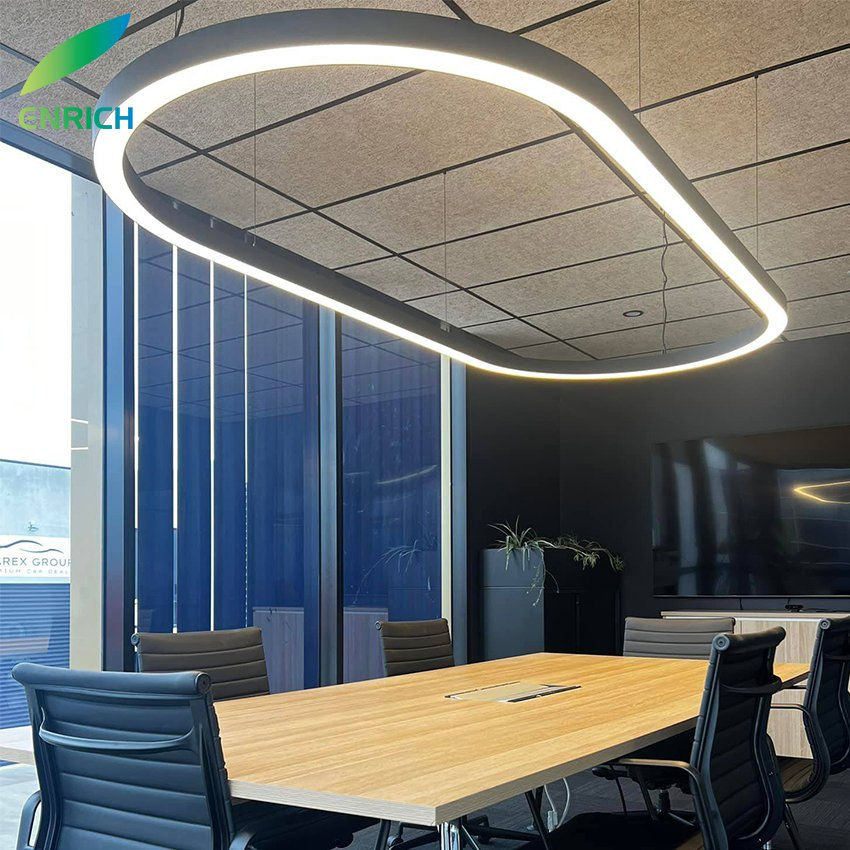

Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall

Still deciding? Get samples of $ !
Order Sample

Product Description

📦 Basic Information
Model NO.
LC6060-F600/1000
Style
European
Certification
CE, EMC, RoHS, SAA
Voltage
AC85-265V
Beaming Angle
120°
LED Chips
Epistar SMD 2835 - 504PCS
Wattage
20W/M
Luminous Efficiency
100lm/W
CRI
>80/90
Shell Color
Black, White, Silver, Customized
Specification
L1000*W600*W60*H60mm
Origin
China
💡 Product Description

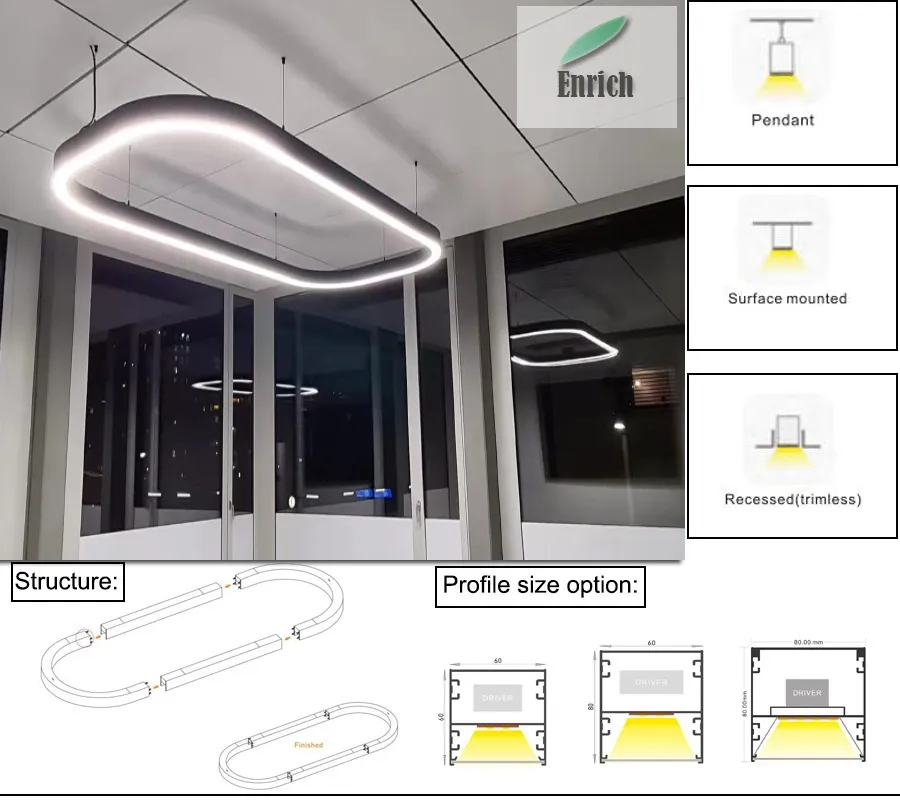

LED Linear Light Specifications

✨ Main Features

  • No dark area, lighting uniformly, excellent heat dissipation performance.
  • High Efficacy: 100lm/w ±5%.
  • Material: 1.5mm thick extrusion aluminum profile housing, frosted PC cover.
  • High CRI: Ra>80 (standard), Ra>90 (upgrade available).
  • Certified driver, flicker-free, build-in, power factor >0.9.
  • LED PCB board, SMD2835, long lifespan over 50,000 hours.
  • Flexible mounting: Suspended, Ceiling surface, or Rimless recessed.
  • 5-year warranty for peace of mind.

📊 Technical Specifications

Model Parameter Details
VoltageAC220-240V / AC100-240V
Adjustable Height2.0 Meters
Material6063-T5 Aluminum + PC / Acrylic Resin
CCT Options3000K / 4000K / 6000K / RGBW
Average Life50,000 Hours
ApplicationOffice, Commercial Buildings, Residential, Gym, School
🏢 Application & Production

Ideal for shopping malls, stores, offices, hotels, and modern residential spaces.

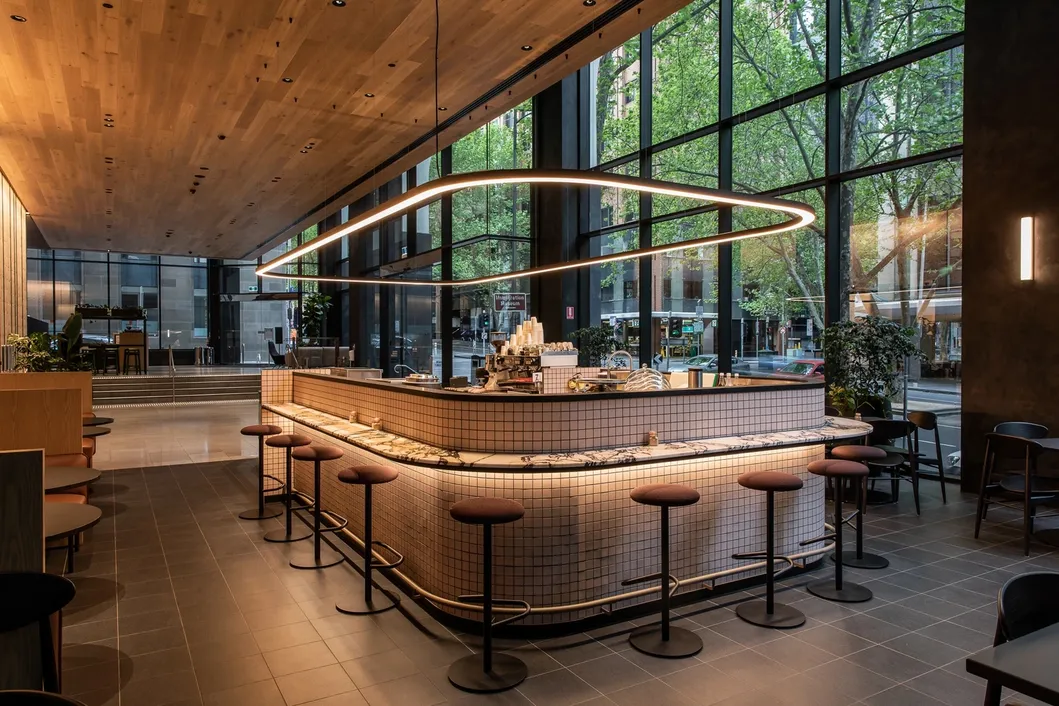

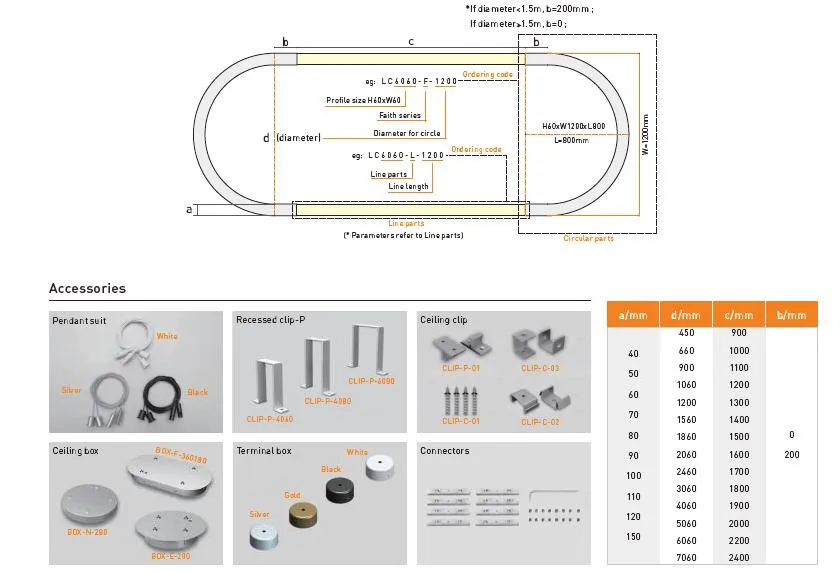

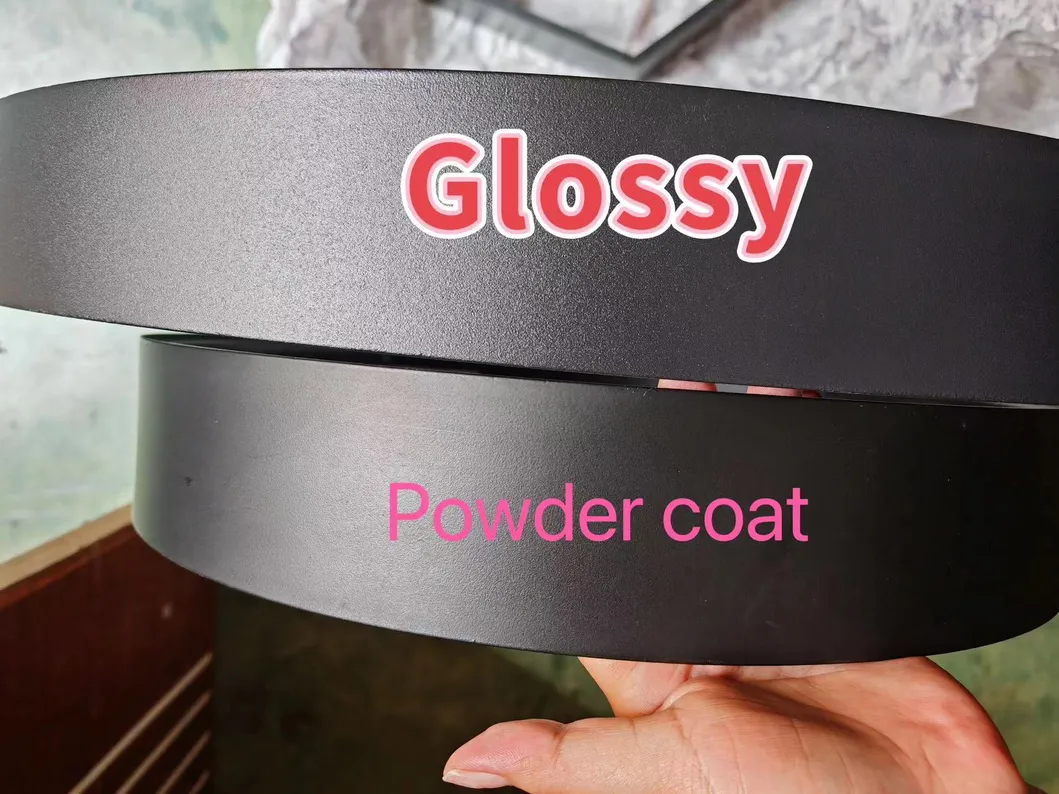

Application 1 Application 2 Application 3
🛠️ Quality Control & Manufacturing

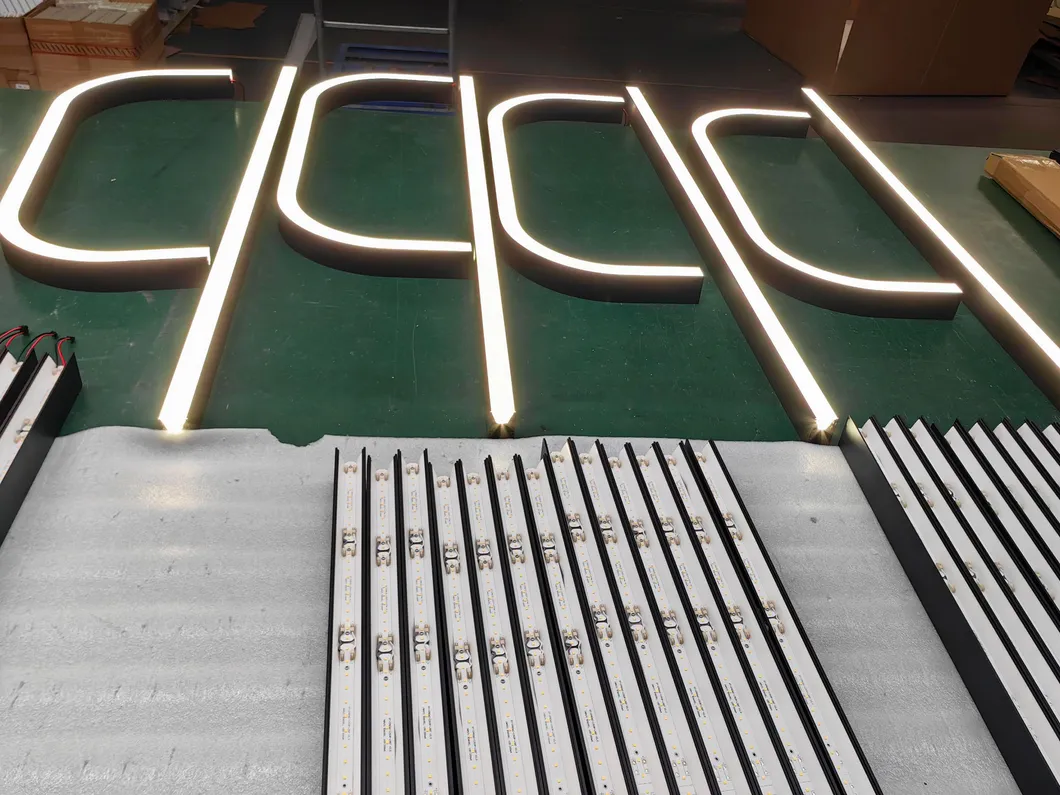

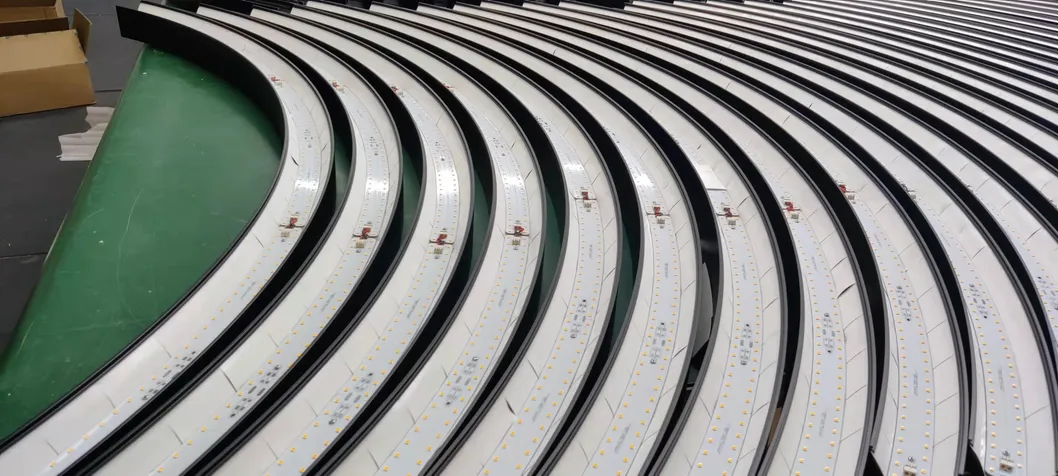

Production Line 1 Production Line 2 Global Fair

Frequently Asked Questions

Q1: What is the warranty period for this linear light?
We provide a 5-year warranty, ensuring long-term reliability and performance for your lighting projects.

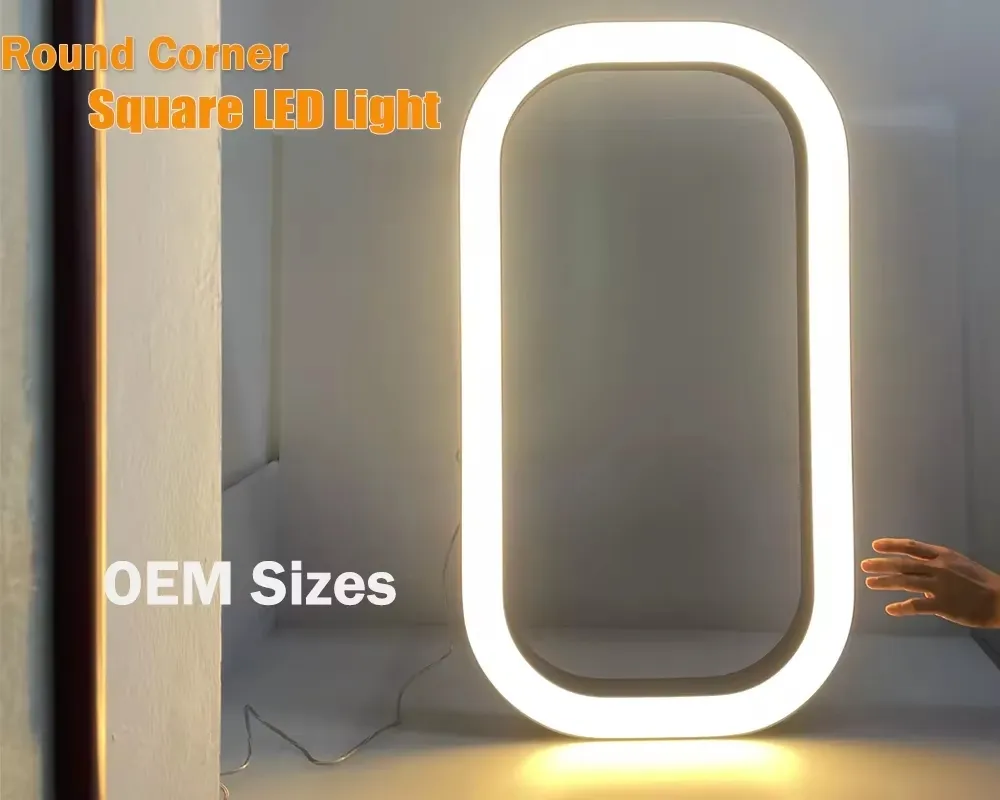

Q2: Can the size and shape be customized?
Yes, we accept OEM designs and any shapes according to your inquiry. You can provide drawings for your specific project requirements.
Q3: What mounting options are available?
Our lights support suspended, ceiling surface, and rimless recessed mounting to suit different architectural needs.
Q4: What is the efficacy and light quality?
The lighting efficacy is 100lm/W ±5% with a standard CRI >80, upgradeable to CRI >90 for better color rendering.
Q5: Are the drivers flicker-free?
Yes, we use certified, flicker-free built-in drivers with a power factor greater than 0.9.
Q6: What is the lifespan of the LED chips?
We use high-quality SMD2835 LED chips with a lifespan exceeding 50,000 hours (Ta=25ºC).
