IP65 Industrial Stainless Steel Waterproof Lighting Fixture for T8 Lamp Tube

Basic Specifications

Model NO.SL6236T

CertificationCE, CCC, RoHS, TUV, GS, ENEC, VDE

IP ClassIP65 / IK10

Voltage220V

Watt2X36W

Fixture MaterialSUS304/SUS316 + Tempered Glass

Fixture Size1310*210*97mm

Warranty5 Years

Product Description

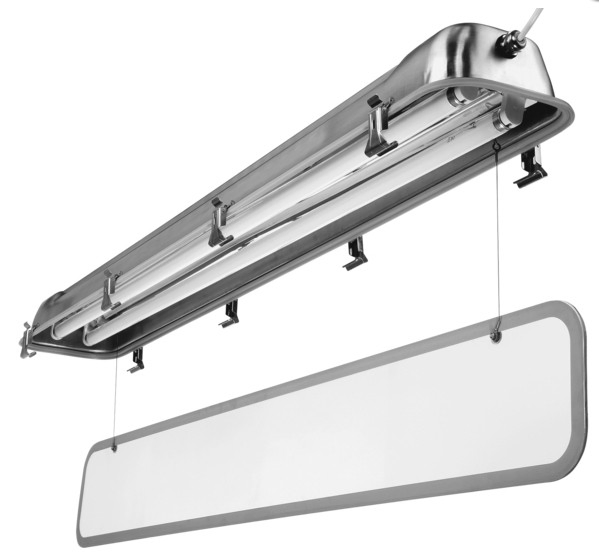

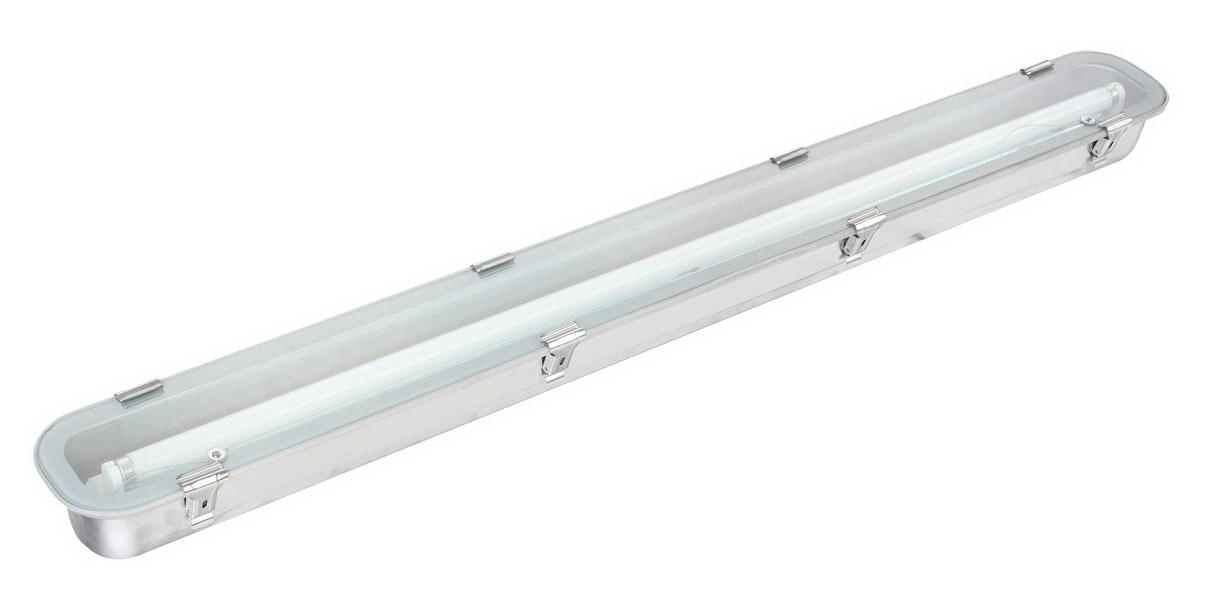

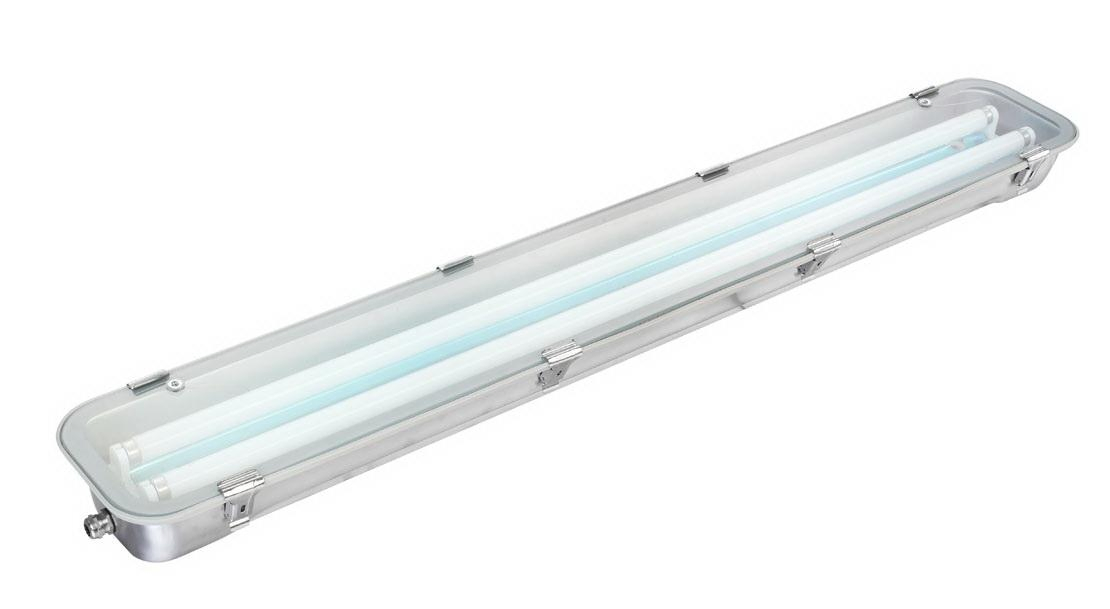

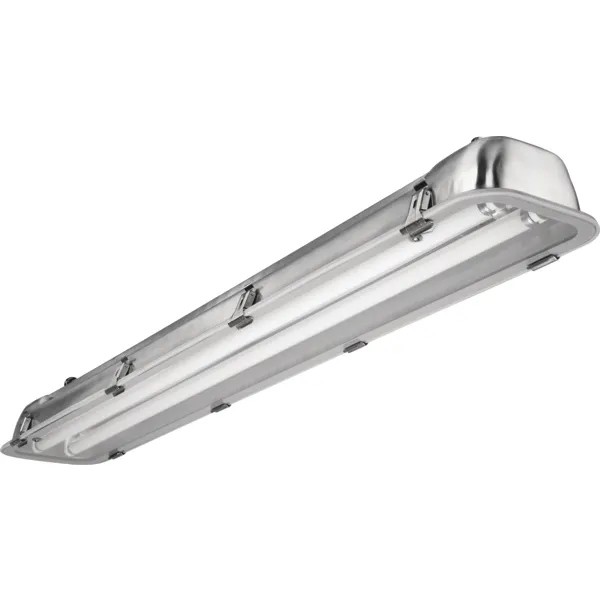

IP65 Industrial Stainless Steel Waterproof Lighting Fixture For T8 lamp tube

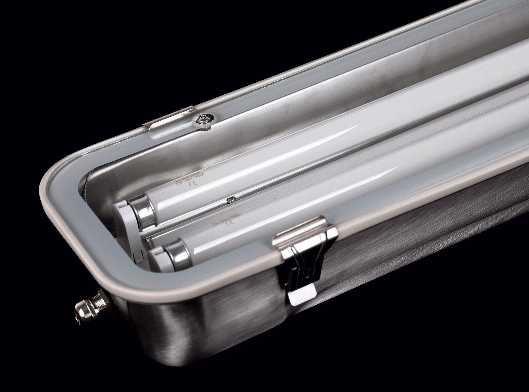

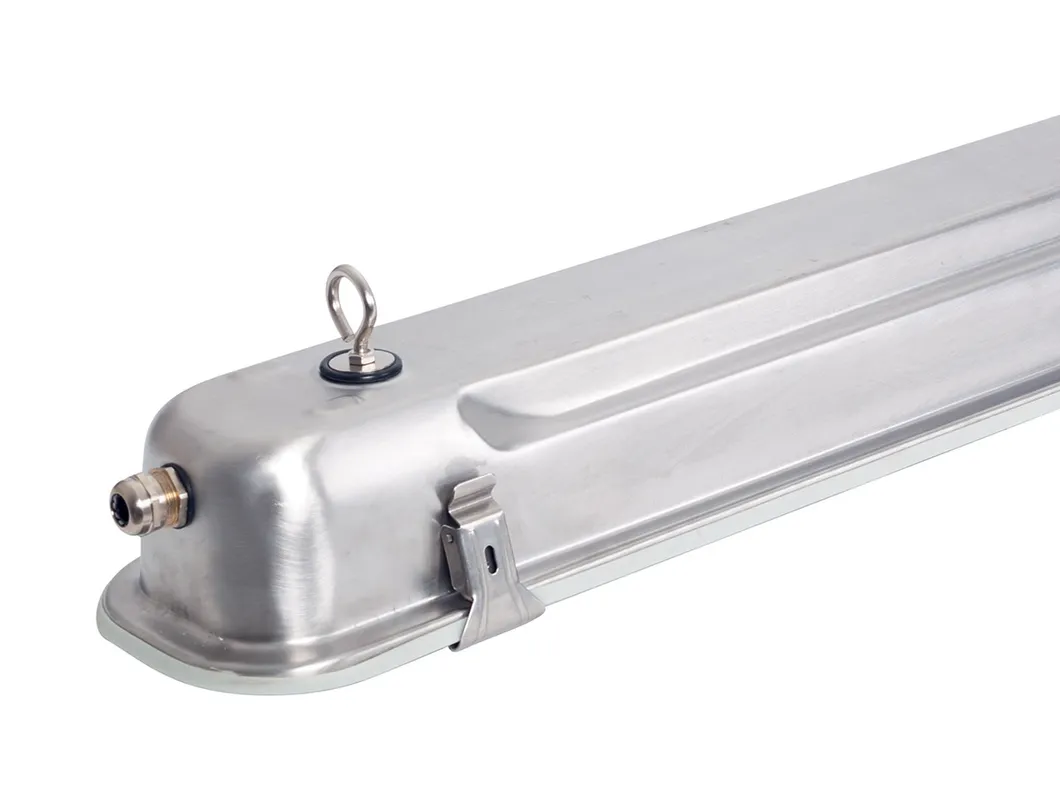

◈ 1. Lighting body: Stainless steel 304 or 316 material body with high impact resistance, non-deformable structure.

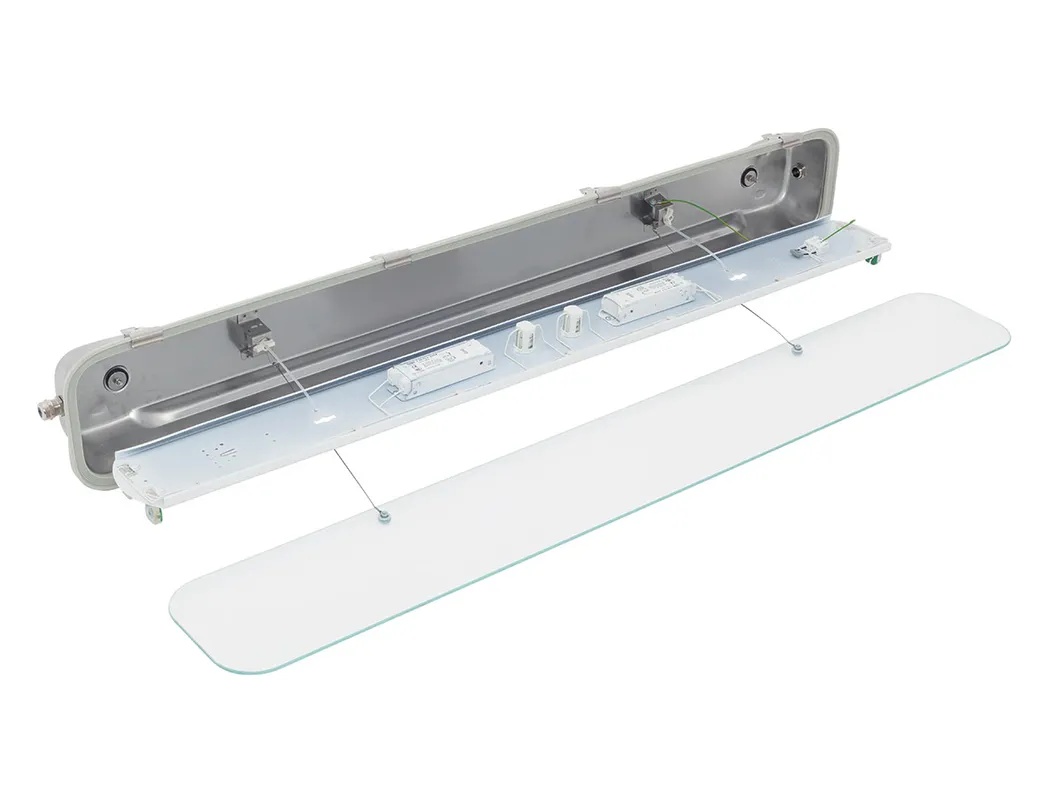

◈ 2. Lighting cover: 5mm high quality tempered safety glass with metal clips protection.
◈ 3. Reflector: 0.45mm Specular aluminium or white painted metal sheet.
◈ 4. Protection: IP65 rated, waterproof, explosion proof, and dustproof.

Technical Data Sheet

Item No.	Watt	Lamp Holder	Clips QTY	IP Rating	Product Size (mm)	Carton Size (mm)
SL6118T	1X18W	G13	6	IP65	710x140x97	760170145
SL6218T	2X18W	G13	6	IP65	710x210x97	760240145
SL6136T	1X36W	G13	8	IP65	1310x140x97	1360170145
SL6236T	2X36W	G13	8	IP65	1310x210x97	1360240145
SL6158T	1X58W	G13	10	IP65	1610x140x97	1660170145
SL6258T	2X58W	G13	10	IP65	1610x210x97	1660240145

Frequently Asked Questions

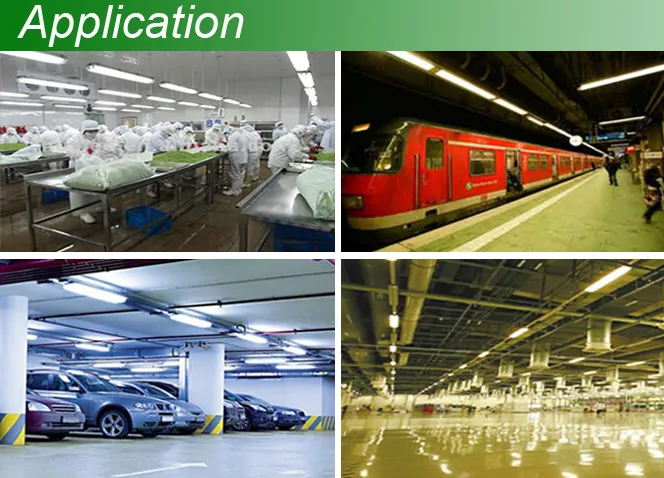

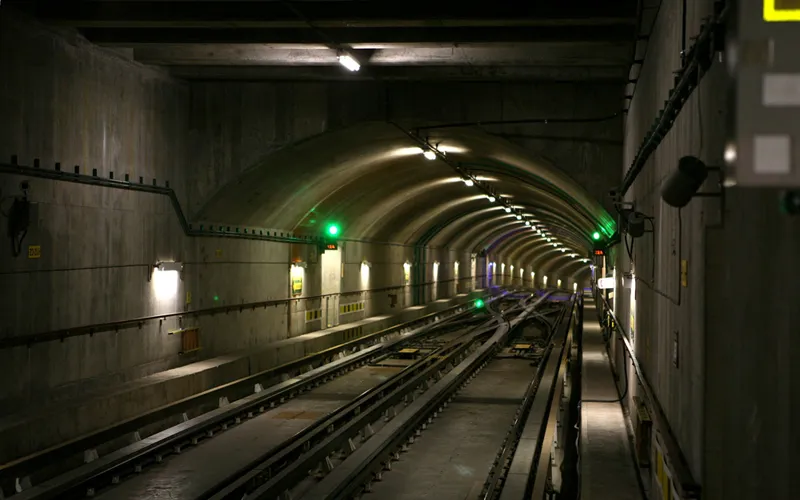

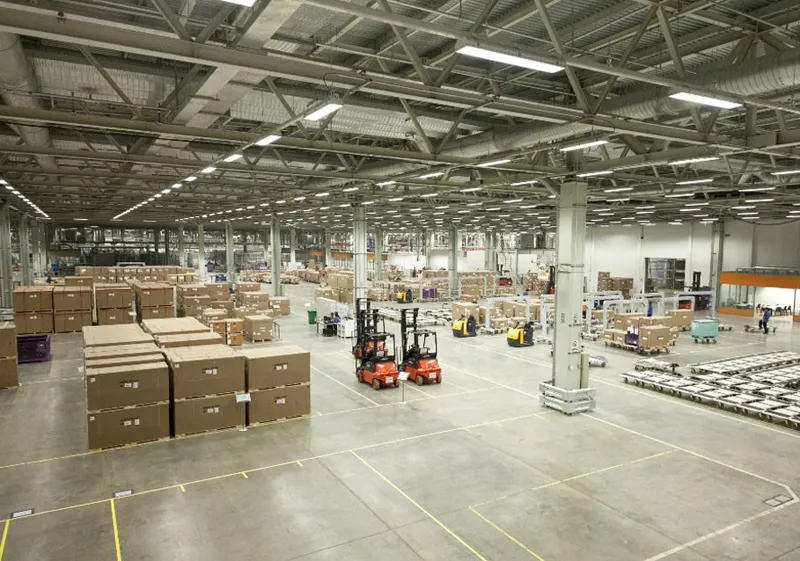

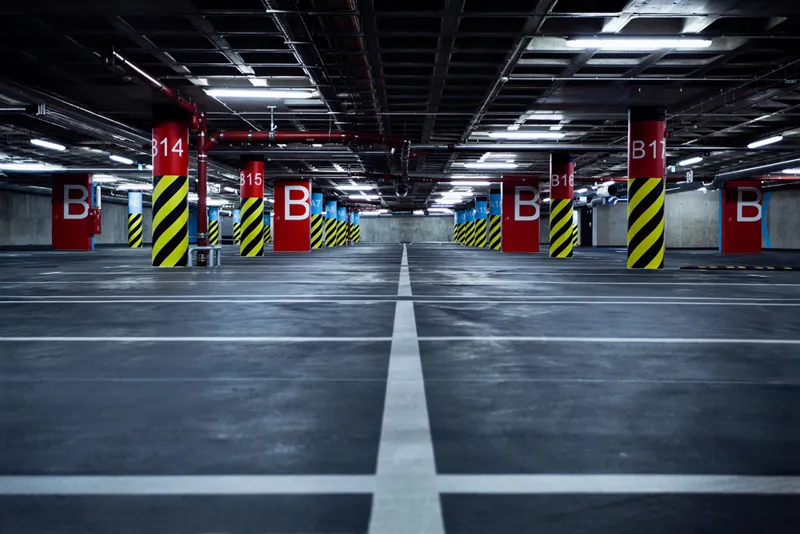

Q1: What environments are these IP65 fixtures suitable for?

They are ideal for indoor and outdoor areas with high IP requirements, such as chemical plants, food industries, mining, oil refineries, and swimming pools.

Q2: What is the difference between the SUS304 and SUS316 options?

Both are high-quality stainless steel, but SUS316 offers superior corrosion resistance, making it better suited for extreme marine or highly corrosive chemical environments.

Q3: Can these fixtures be used with LED tubes?

Yes, the fixtures are compatible with T8 or T5 lamp tubes, including single or double LED-tube configurations.

Q4: What is the IK10 rating?

IK10 is the highest level of protection against external mechanical impacts, ensuring a non-deformable structure even in high-vibration environments.

Q5: What certifications do these lighting fixtures hold?

Our fixtures are certified by CE, GS, RoHS, SAA, TUV, and ENEC, ensuring compliance with international safety and quality standards.

Q6: What is the warranty period for the SL series?

The product comes with a comprehensive 5-year warranty, covering performance and material durability.
