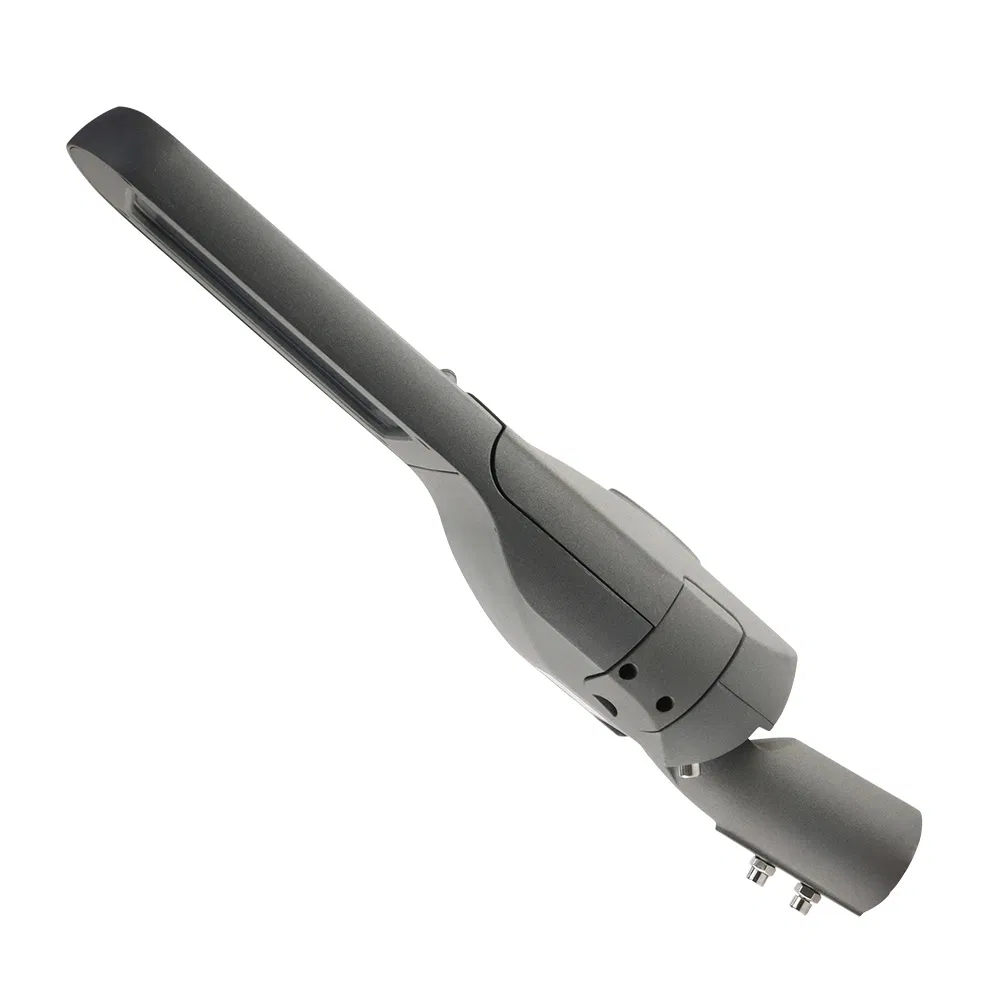

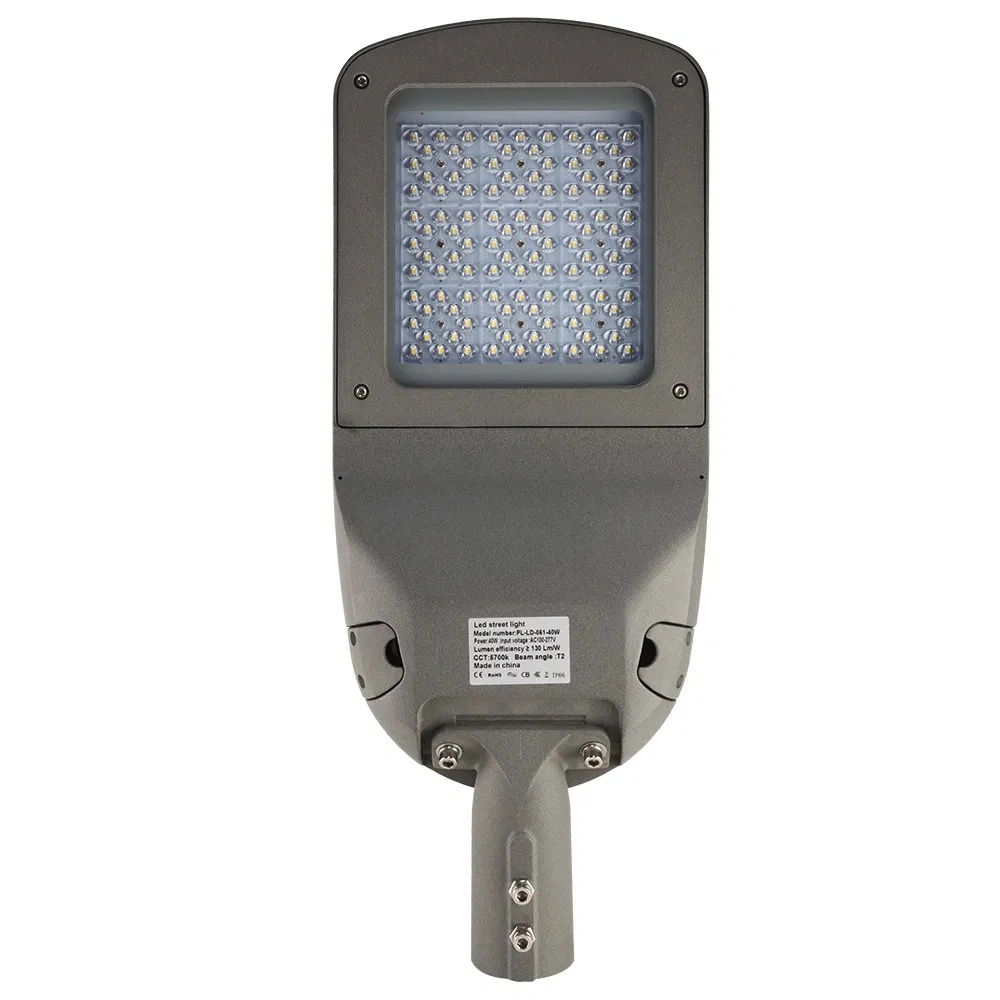

Good Quality Aluminum Waterproof IP66 Outdoor 30W-240W LED Street Light 120W

Customization: Available
Power Supply: Inventronics/Meanwell Driver
Color Temperature: 2700-6500K

Product Description

Basic Information
Model NO.:PL-LD-061
Material:Aluminium + Tempered Glass
Power:60W
IP Rating:IP66
Input Voltage:AC100-305V
LED Chips:Lumileds 3030SMD
Efficiency:150LM/W±5%
Lifespan:100,000 hours (L80B10)

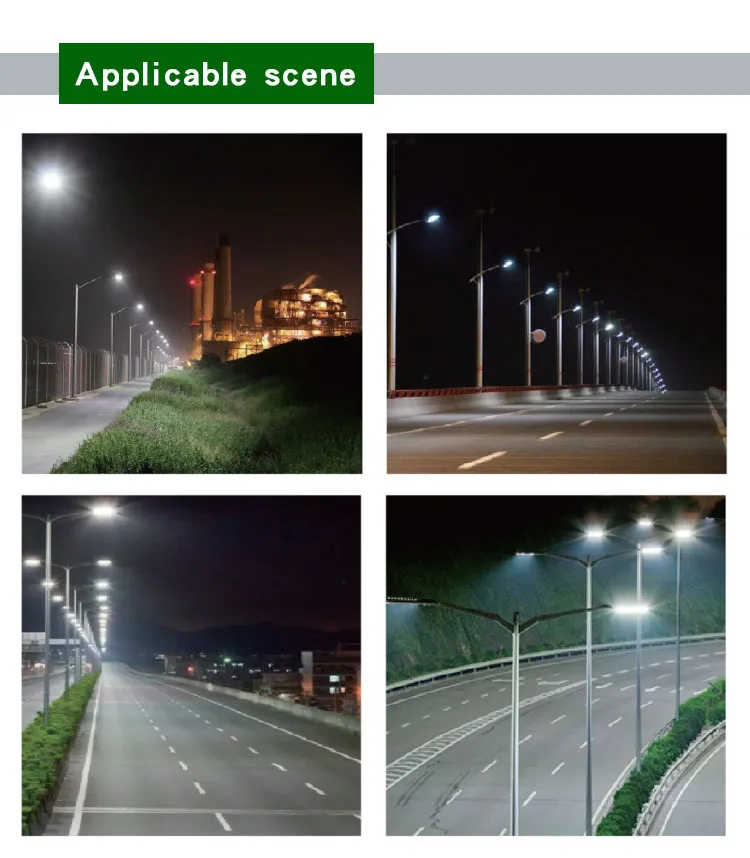

Application:Square, Highway, Garden, Road, Parking Lot
Product Description

Good quality aluminum waterproof IP66 outdoor 60w led street light

Adopting imported lumileds chips 3030smd as light source. Energy-saving and long life.
5mm toughened transparent glass, high temperature resisting, transmittance as high as 92%.
Aluminium alloy radiator with high thermal coefficient and oxidation technology for corrosion-resistance.
Constant current supply, high stability and security.
Energy saving up to 80% with an easy-installation design.

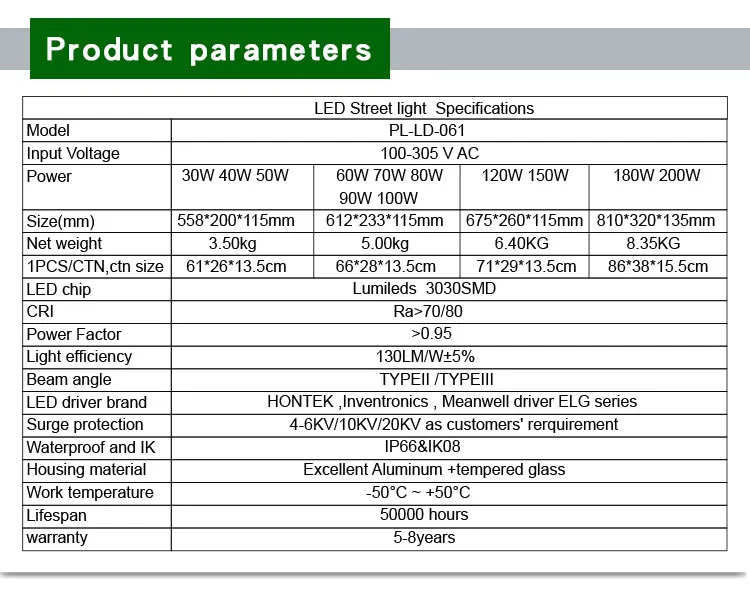

Technical Specifications
ModelPL-LD-061
Power Range30W / 40W / 50W / 60W / 70W / 80W / 100W / 120W / 150W / 200W
CRIRa>70/80
Power Factor>0.95

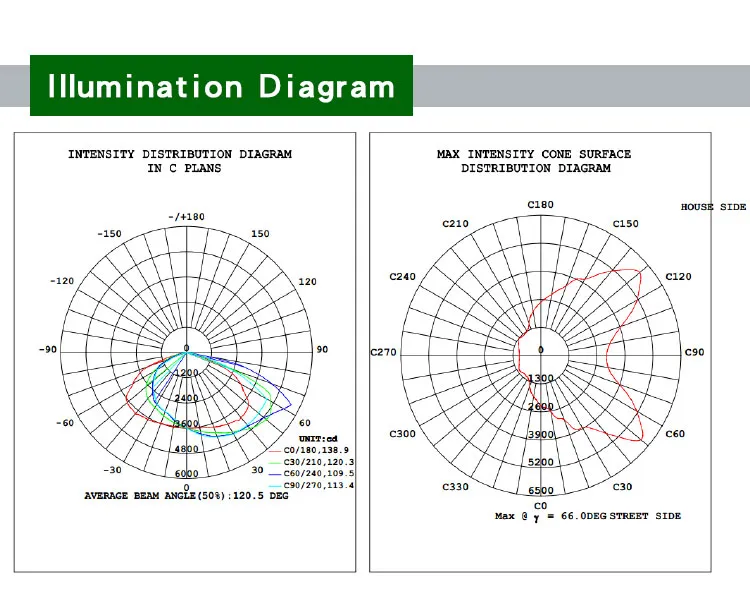

Beam AngleTYPE II / TYPE III / TYPE IV
Driver BrandHONTEK, Inventronics, Meanwell, MOSO

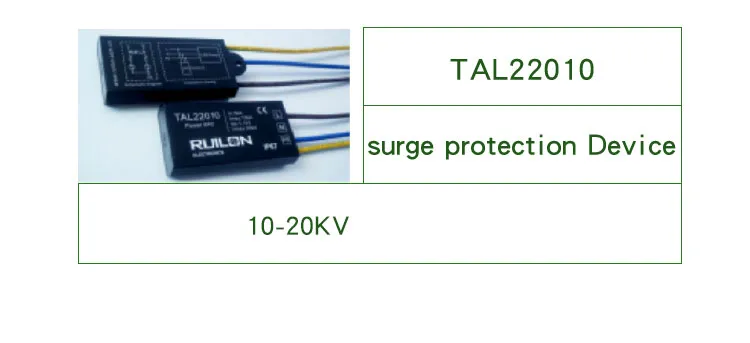

Surge Protection4-6KV / 10KV / 20KV
Lamppost Diameter48mm / 52mm / 60mm / 76mm
Working Temp.-40ºC ~ 50ºC
Warranty5 - 7 years

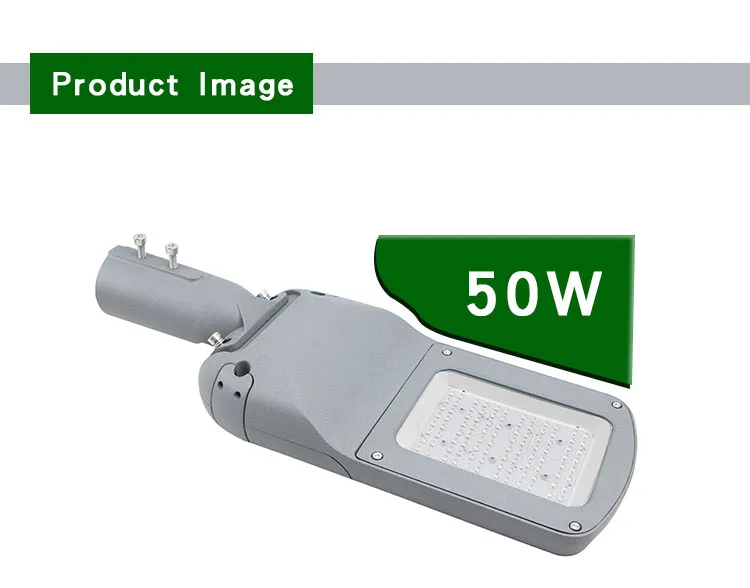

Product Gallery
Frequently Asked Questions
Q: Do LED lights really have a 50,000-hour lifespan? A: A 50,000-hour or longer lifespan is a theoretical value from lab testing. Actual lifespan may vary based on the working environment, but with high-quality materials, they can achieve this duration.
Q: For the same power, why do different suppliers have different brightness levels? A: Brightness depends on the chip quality and the specific chip version used. Even with the same chip, different brightness versions or thermal management can cause slight variations.
Q: What is color temperature? A: Color temperature is measured in Kelvins (K). Lower temperatures (Warm White) are used for relaxation, while higher temperatures (Cool White) are used for concentration in offices or industrial spaces.
Q: What is CRI? A: CRI (Color Rendering Index) measures how accurately a light source reveals the true colors of objects. A higher CRI provides more natural colors but generally involves a higher cost.
Q: What is PF and efficiency? A: PF (Power Factor) and efficiency represent the electrical performance of the LED driver. Higher ratings indicate better energy conversion and higher quality components.
Q: Can these lights withstand extreme outdoor conditions? A: Yes, with an IP66 rating and IK09 impact protection, these lights are designed for high resistance to water, dust, and mechanical impacts in outdoor environments.
