Precision Machine Vision Lighting for Defect Detection on Curved and Cylindrical Objects in Industrial Production

1 / 5

Precision Machine Vision Lighting for Defect Detection on Curved and Cylindrical Objects in Industrial Production

Customization:	Available
Voltage:	24V
Voltage Type:	DC

Send Inquiry

Product Description

Overview

Model NO.

HF-2RND9040A90

IP Rating

IP54

Beam Angle(°)

CRI (Ra>)

Input Voltage(V)

DC 24V

Luminous Efficiency

110 Lm/W

Working Lifetime

30,000 Hours

Material

Aluminum Alloy + PMMA

Emitting Color

Red, Green, White, Blue

Package Size

20.00cm * 20.00cm * 10.00cm

Product Description

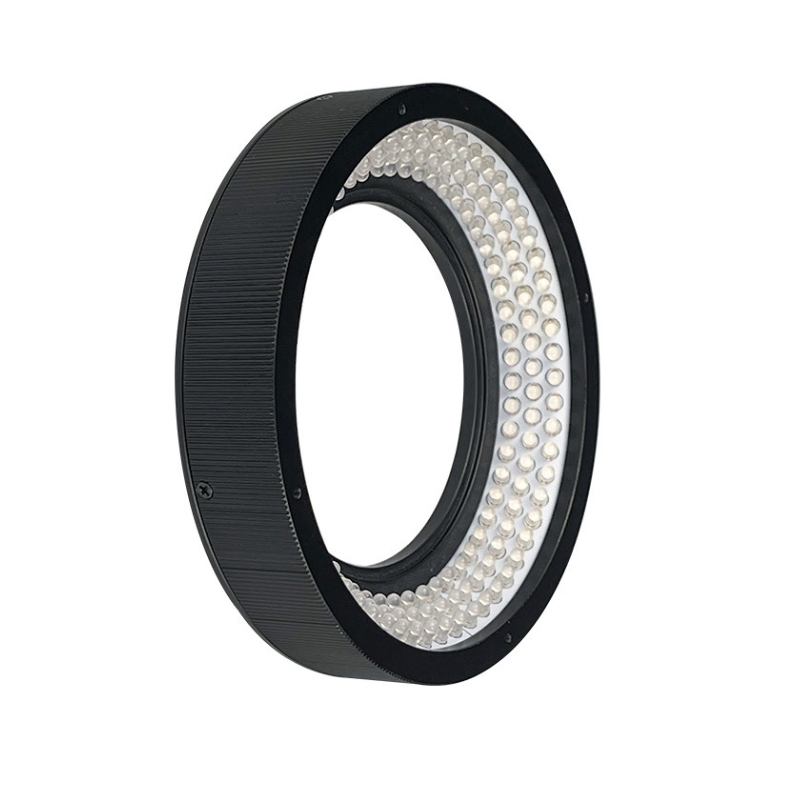

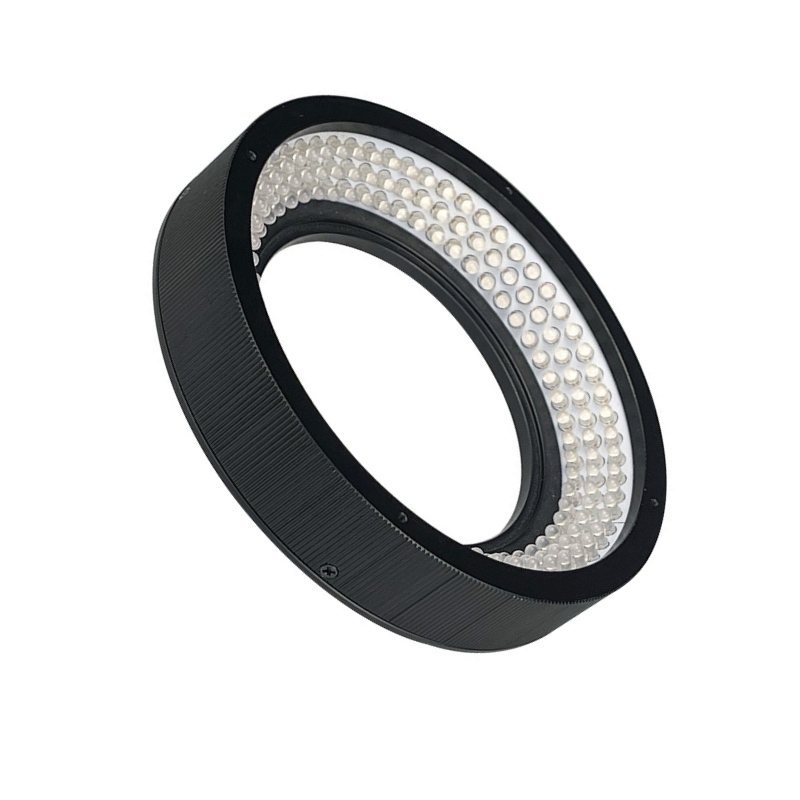

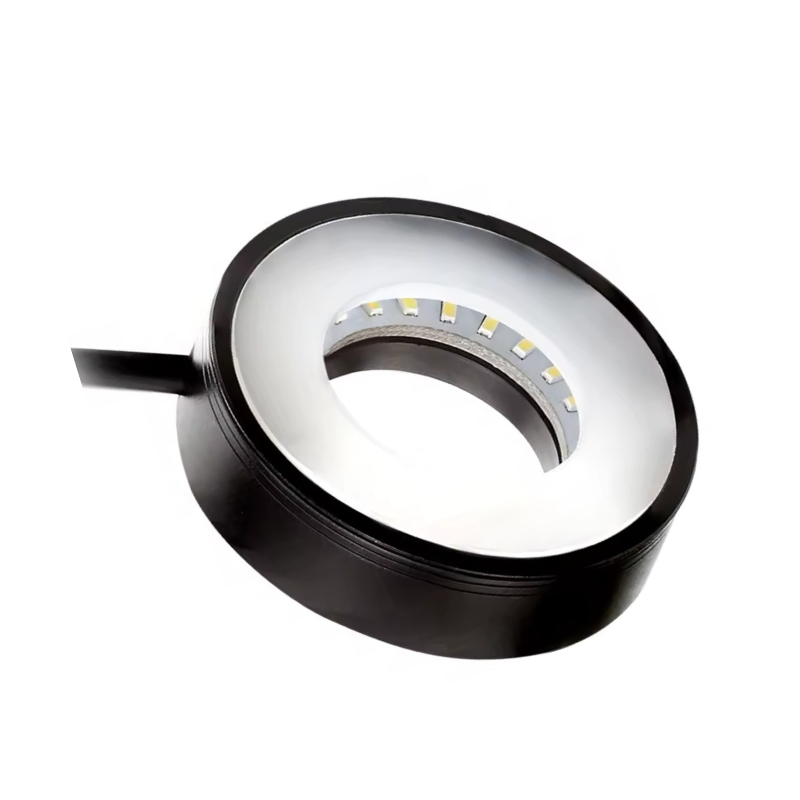

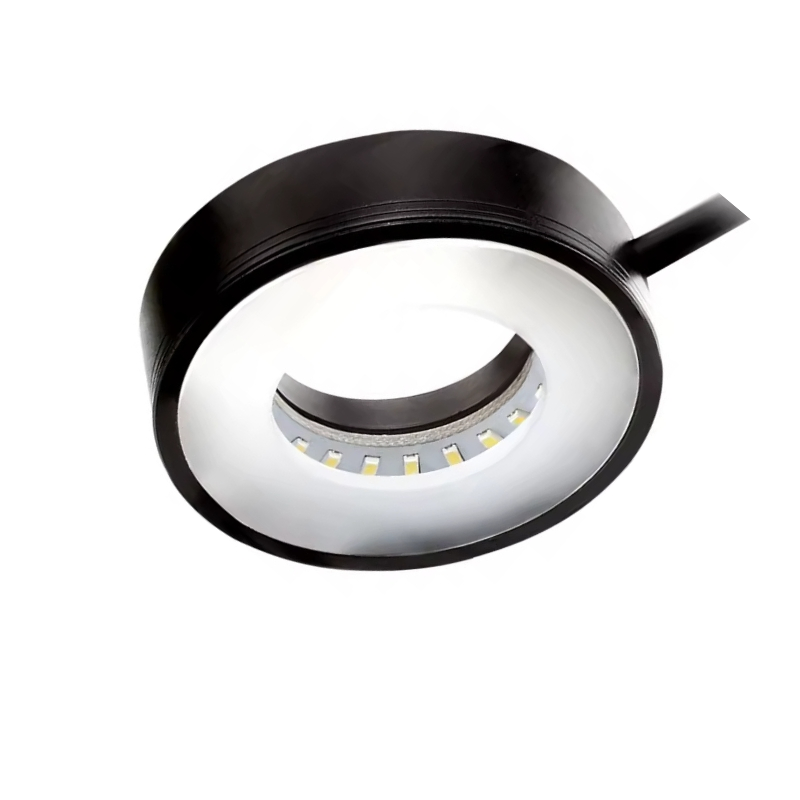

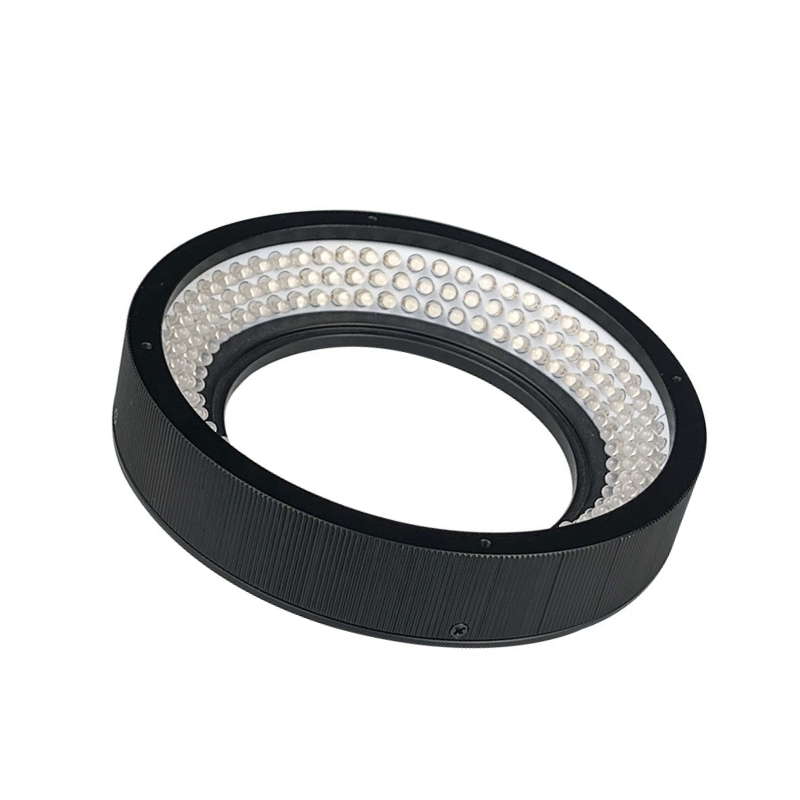

This intensity-adjustable Ring Light provides strong and highly uniform light, which is ideal for laboratory and industrial applications.

Key Features:

Power supply: Input 24V DC. (Customized power supported).
Customized diameters available.
Energy-saving, Super Low Power Consuming, Highly Bright.
Ideal light source for milling machines, microscopes, industrial cameras, and close-up photography.
Equipped with brightness controller for easy intensity adjustment, providing cool-to-touch light that lasts longer than traditional tungsten bulbs.

Detailed Photos

Product Parameters

Light Source Color	Wavelength / Tech Data
White	6000-7500K
Red	620nm-630nm
Green	520nm-530nm
Blue	460nm-470nm
Environment	0ºC-40ºC / 20%-85%RH
Warranty	One-year warranty & Lifetime support

Model	Diameters (Outer/Inner mm)	Angle	Input Voltage
HF-2RND6030A90	Φ60, Φ30	90°	24V
HF-2RND7040A90	Φ70, Φ40	90°	24V
HF-2RND8040A90	Φ80, Φ40	90°	24V
HF-2RND9040A90	Φ90, Φ40	90°	24V
HF-2RND12050A90	Φ120, Φ50	90°	24V
HF-2RND200154A90	Φ200, Φ154	90°	24V

Packaging & Shipping

Facility Overview

Frequently Asked Questions

What are the main applications for this Ring Light?

It is ideal for laboratory and industrial machine vision applications, including milling machines, microscopes, and industrial cameras for defect detection.

Can the brightness of the light be adjusted?

Yes, with an extra connected brightness controller, you can easily adjust the intensity to achieve clear-and-crisp illumination.

Do you support customized diameters and power requirements?

Yes, we support customized diameters and customized power supply inputs to meet specific industrial needs.

What is the expected lifetime of the LEDs?

The theoretical reference lifetime is approximately 30,000 hours for White and Red light sources.

What kind of after-sales service is provided?

We offer a one-year warranty along with lifetime technical support for all our lighting products.

Is this light source energy-efficient?

Absolutely. It features super low power consumption while providing high brightness, making it an energy-saving alternative to traditional bulbs.
