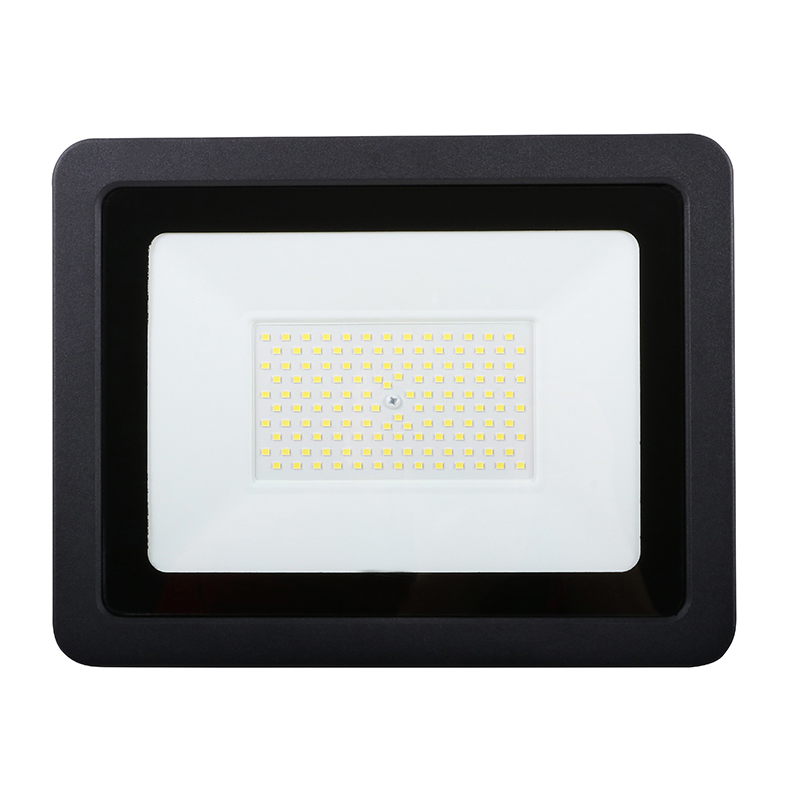

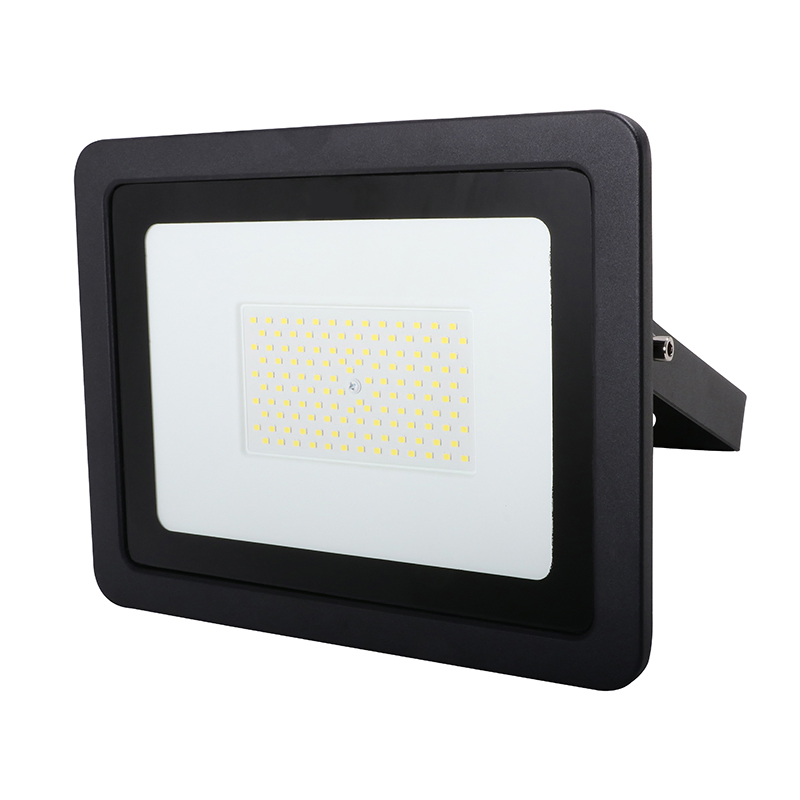

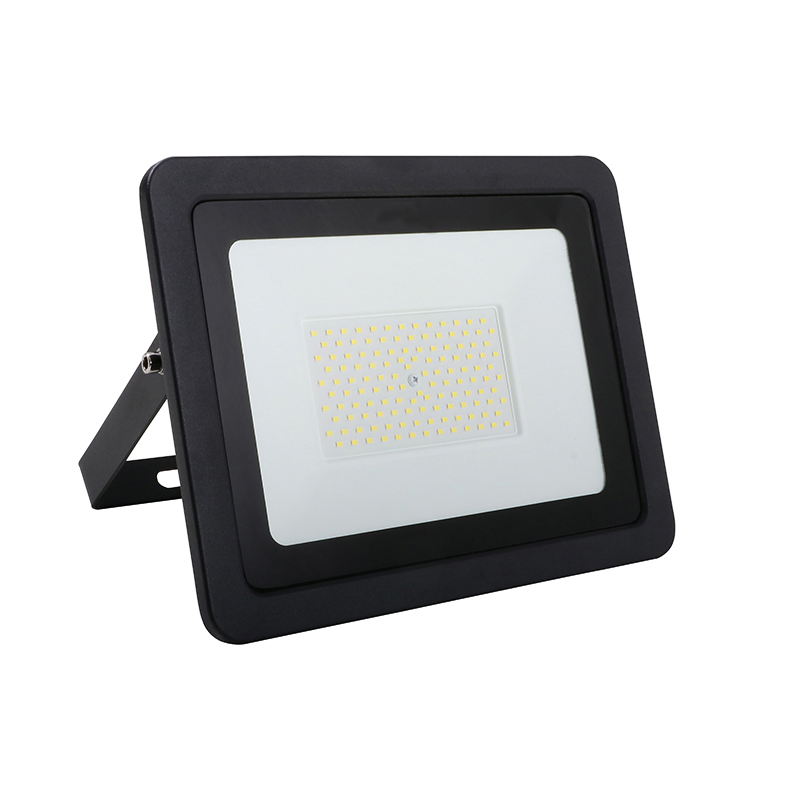

80W IP65 LED Outdoor Architectural Flood Lighting

1 / 5

80W IP65 LED Outdoor Architectural Flood Lighting

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:SLFAP810

Power:80W

IP Rating:IP65

Projection Distance:12-18m

Operating Voltage:100-240V

Luminous Efficacy:90 Lm/W

Certification:CE, RoHS

Warranty:3 Years

Product Overview

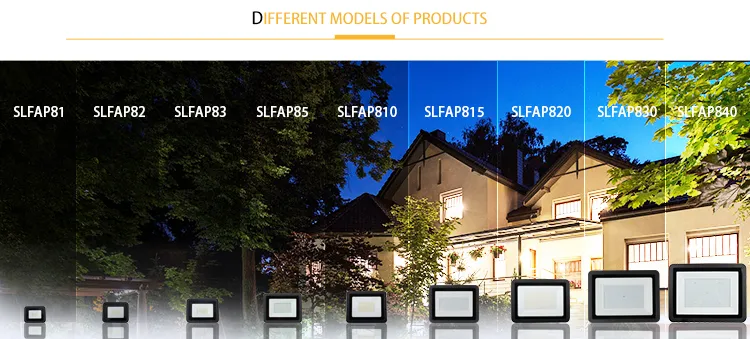

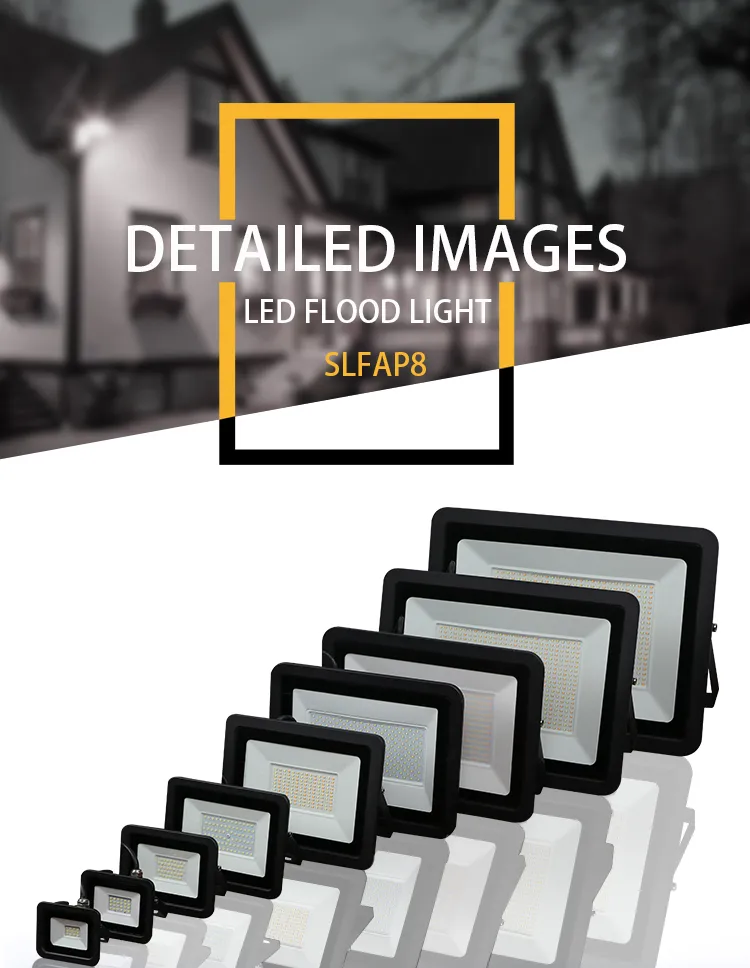

Item	Actual Wattage	CRI	Color Temp	IP Grade	Dimension (cm)	Luminous	LED Chips
SLFAP81 10W	10W	70	CW,NW,WW	IP65	10.48.32.5	1000LM	12 PCS 2835
SLFAP82 20W	20W	70	CW,NW,WW	IP65	12.19.52.6	2000LM	24 PCS 2835
SLFAP83 30W	30W	70	CW,NW,WW	IP65	16.112.32.9	3000LM	36 PCS 2835
SLFAP85 50W	50W	70	CW,NW,WW	IP65	20.716.13.1	5000LM	60 PCS 2835
SLFAP810 80W	80W	70	CW,NW,WW	IP65	26.920.93.4	8000LM	96 PCS 2835
SLFAP810 100W	100W	70	CW,NW,WW	IP65	26.920.93.4	10000lm	120 PCS 2835
SLFAP815 150W	150W	70	CW,NW,WW	IP65	26.920.93.4	15000lm	180 PCS 2835
SLFAP820 200W	200W	70	CW,NW,WW	IP65	33.025.03.4	20000lm	240 PCS 2835
SLFAP830 300W	300W	70	CW,NW,WW	IP65	44.533.44.5	30000lm	360 PCS 2835
SLFAP840 400W	400W	70	CW,NW,WW	IP65	49.041.04.8	40000lm	480 PCS 2835

Core Features

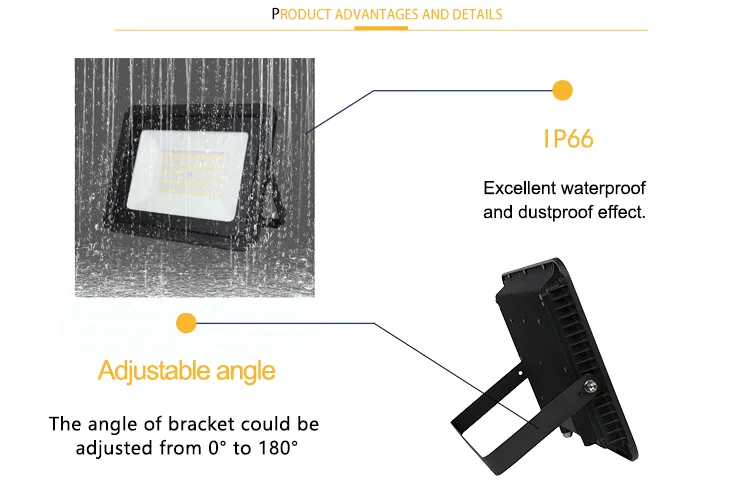

IP65 waterproof / dust proof / explosion proof / IK08

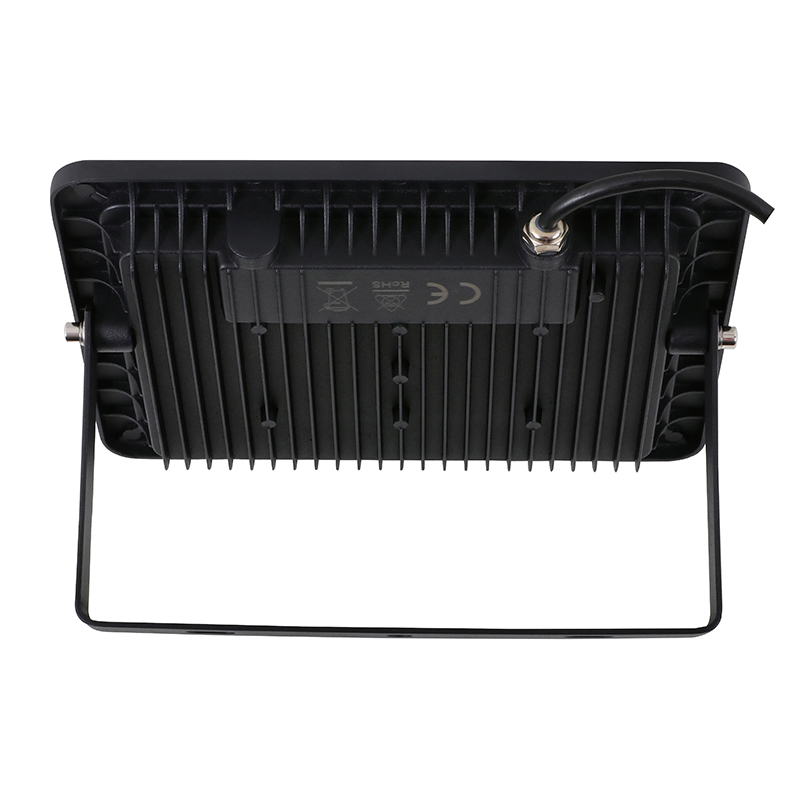

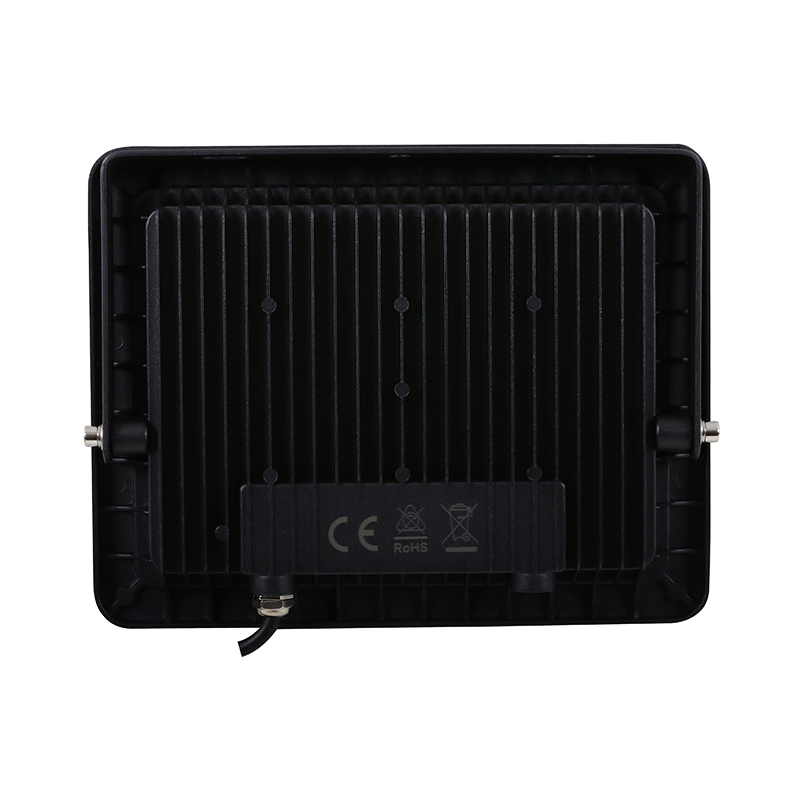

Pure Aluminum shape for superior heat dissipation

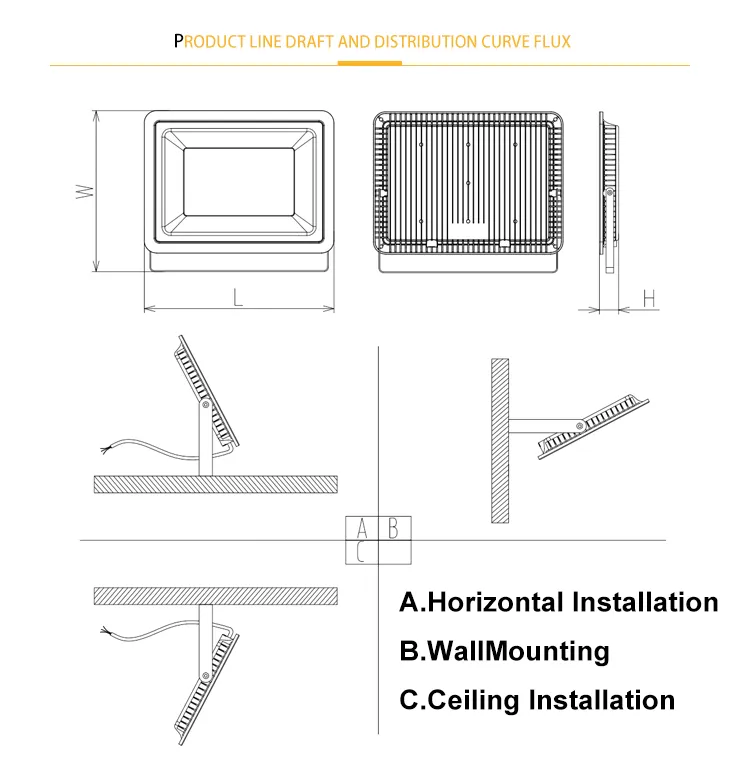

Angle Bracket, easy to install by drill
Easy replacement and installation
SMD 3030 Ra>70 / SDCM<7
50,000 times switching cycle before failure
Total harmonic distortion (THD) < 20%

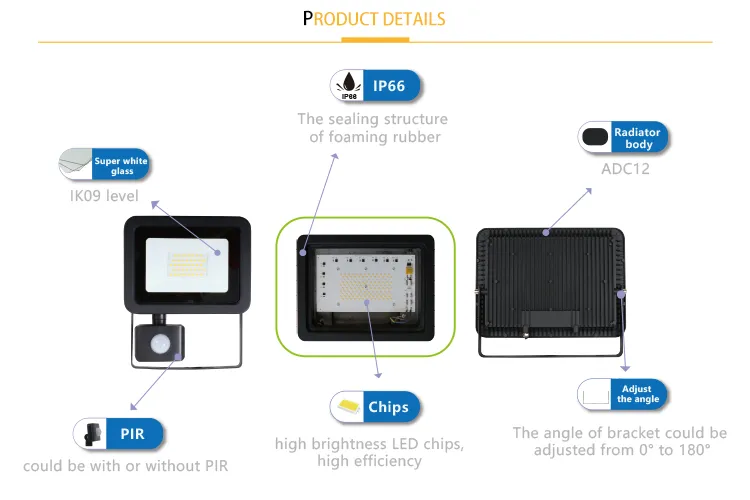

Visual Presentation

Applications

Commercial: Schools, Billboards, Buildings

Public: Airports, Stadiums, Stations

Industrial: Warehouses, Parking lots, Gas stations

Environmental Specs

Operating Temp:-20°C to +45°C

Storage Temp:-40°C to +60°C

Frequently Asked Questions

Q1: What is the waterproof rating of this flood light? The light features an IP65 rating, making it completely waterproof and dust-proof, ideal for outdoor architectural use.

Q2: How durable is the switching cycle? It is designed for high durability with a capacity of up to 50,000 switching cycles before any expected failure.

Q3: Does the product come with a warranty? Yes, this LED flood light comes with a 3-year warranty for peace of mind.

Q4: What material is used for heat dissipation? The fixture is made of pure aluminum, which is excellent at heat dissipation to ensure a long lifespan.

Q5: Can it be installed on a billboard? Absolutely, it is highly recommended for commercial lighting applications including billboards, buildings, and schools.

Q6: What is the operating voltage range? It supports a wide input voltage range of AC 100-240V, making it compatible with most global power standards.
